#include <yarp/dev/Map2DPath.h>

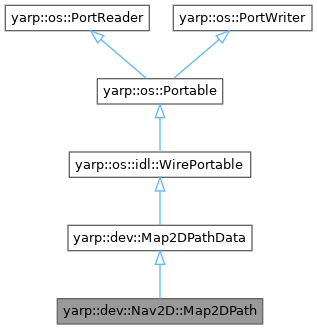

Inheritance diagram for yarp::dev::Nav2D::Map2DPath:

Public Types
using	iterator = std::vector< Map2DLocation >::iterator

using	const_iterator = std::vector< Map2DLocation >::const_iterator

Public Types inherited from yarp::dev::Map2DPathData
typedef yarp::os::idl::Unwrapped< Map2DPathData >	unwrapped

Public Member Functions
	Map2DPath (const std::vector< yarp::dev::Nav2D::Map2DLocation > &map_waypoints, const std::string &desc="")
	Constructor.

	Map2DPath ()
	Default constructor: the map name is empty, coordinates are set to zero.

std::string	toString () const
	Returns text representation of the path.

bool	operator!= (const Map2DPath &r) const
	Compares two Map2DPath.

bool	operator== (const Map2DPath &r) const
	Compares two Map2DArea.

yarp::dev::Nav2D::Map2DLocation &	operator[] (size_t index)
	Returns a waypoint in the path.

size_t	size () const
	Returns the size of the path.

double	getLength () const
	Returns the length of the path.

bool	isOnSingleMap () const
	Checks if all the waypoints of the path belong to the same map return true if the test is successful.

bool	read (yarp::os::idl::WireReader &reader) override

bool	write (const yarp::os::idl::WireWriter &writer) const override

bool	read (yarp::os::ConnectionReader &reader) override
	Read this object from a network connection.

bool	write (yarp::os::ConnectionWriter &writer) const override
	Write this object to a network connection.

void	clear ()
	Remove all elements from the path.

iterator	begin () noexcept
	Returns an iterator to the begin of the Path.

iterator	end () noexcept
	Returns an iterator to the end of the Path.

const_iterator	cbegin () const noexcept
	Returns a const iterator to the begin of the Path.

const_iterator	cend () const noexcept
	Returns a const iterator to the end of the Path.

void	push_back (yarp::dev::Nav2D::Map2DLocation loc)
	Inserts a new location into the path @loc the location to be inserted.

Public Member Functions inherited from yarp::dev::Map2DPathData
	Map2DPathData ()=default

	Map2DPathData (const std::vector< yarp::dev::Nav2D::Map2DLocation > &waypoints, const std::string &description)

bool	read (yarp::os::idl::WireReader &reader) override

bool	read (yarp::os::ConnectionReader &connection) override
	Read this object from a network connection.

bool	write (const yarp::os::idl::WireWriter &writer) const override

bool	write (yarp::os::ConnectionWriter &connection) const override
	Write this object to a network connection.

std::string	toString () const

Public Member Functions inherited from yarp::os::idl::WirePortable
virtual bool	readBare (yarp::os::ConnectionReader &reader)

virtual bool	writeBare (yarp::os::ConnectionWriter &writer) const

virtual bool	readBottle (yarp::os::ConnectionReader &reader)

virtual bool	writeBottle (yarp::os::ConnectionWriter &writer) const

Public Member Functions inherited from yarp::os::Portable
virtual Type	getType () const

Public Member Functions inherited from yarp::os::PortReader
virtual	~PortReader ()
	Destructor.

virtual Type	getReadType () const

Public Member Functions inherited from yarp::os::PortWriter
virtual	~PortWriter ()
	Destructor.

virtual void	onCompletion () const
	This is called when the port has finished all writing operations.

virtual void	onCommencement () const
	This is called when the port is about to begin writing operations.

virtual yarp::os::Type	getWriteType () const

Additional Inherited Members
Static Public Member Functions inherited from yarp::os::Portable
static bool	copyPortable (const PortWriter &writer, PortReader &reader)
	Copy one portable to another, via writing and reading.

Public Attributes inherited from yarp::dev::Map2DPathData
std::vector< yarp::dev::Nav2D::Map2DLocation >	waypoints {}
	list of waypoints which define the path

std::string	description {}
	user defined string

Detailed Description

Definition at line 18 of file Map2DPath.h.

Member Typedef Documentation

◆ const_iterator

using yarp::dev::Nav2D::Map2DPath::const_iterator = std::vector<Map2DLocation>::const_iterator

Definition at line 100 of file Map2DPath.h.

◆ iterator

using yarp::dev::Nav2D::Map2DPath::iterator = std::vector<Map2DLocation>::iterator

Definition at line 99 of file Map2DPath.h.

Constructor & Destructor Documentation

◆ Map2DPath() [1/2]

Map2DPath::Map2DPath	(	const std::vector< yarp::dev::Nav2D::Map2DLocation > &	map_waypoints,
		const std::string &	desc = `""`
	)

Constructor.

Parameters

area_points a set of Map2DLocations defining the path.

Definition at line 61 of file Map2DPath.cpp.

◆ Map2DPath() [2/2]

Map2DPath::Map2DPath ( )

Default constructor: the map name is empty, coordinates are set to zero.

Definition at line 70 of file Map2DPath.cpp.

Member Function Documentation

◆ begin()

Map2DPath::iterator Map2DPath::begin ( )

noexcept

Returns an iterator to the begin of the Path.

Definition at line 109 of file Map2DPath.cpp.

◆ cbegin()

Map2DPath::const_iterator Map2DPath::cbegin ( ) const

noexcept

Returns a const iterator to the begin of the Path.

Definition at line 120 of file Map2DPath.cpp.

◆ cend()

Map2DPath::const_iterator Map2DPath::cend ( ) const

noexcept

Returns a const iterator to the end of the Path.

Definition at line 125 of file Map2DPath.cpp.

◆ clear()

void Map2DPath::clear ( )

Remove all elements from the path.

Definition at line 55 of file Map2DPath.cpp.

◆ end()

Map2DPath::iterator Map2DPath::end ( )

noexcept

Returns an iterator to the end of the Path.

Definition at line 115 of file Map2DPath.cpp.

◆ getLength()

double Map2DPath::getLength ( ) const

Returns the length of the path.

Returns: the size of the path

Definition at line 84 of file Map2DPath.cpp.

◆ isOnSingleMap()

bool Map2DPath::isOnSingleMap ( ) const

Checks if all the waypoints of the path belong to the same map return true if the test is successful.

Definition at line 94 of file Map2DPath.cpp.

◆ operator!=()

bool Map2DPath::operator!= ( const Map2DPath & r ) const

Compares two Map2DPath.

Returns: true if the two paths are different.

Definition at line 22 of file Map2DPath.cpp.

◆ operator==()

bool Map2DPath::operator== ( const Map2DPath & r ) const

Compares two Map2DArea.

Returns: true if the two areas are identical.

Definition at line 32 of file Map2DPath.cpp.

◆ operator[]()

Map2DLocation & Map2DPath::operator[] ( size_t index )

Returns a waypoint in the path.

Parameters

index the waypoint index

Returns: the waypoint

Definition at line 74 of file Map2DPath.cpp.

◆ push_back()

void Map2DPath::push_back ( yarp::dev::Nav2D::Map2DLocation loc )

Inserts a new location into the path @loc the location to be inserted.

Definition at line 130 of file Map2DPath.cpp.

◆ read() [1/2]

bool yarp::dev::Nav2D::Map2DPath::read ( yarp::os::ConnectionReader & reader )

inlineoverridevirtual

Read this object from a network connection.

Override this for your particular class.

Parameters

reader an interface to the network connection for reading

Returns: true iff the object is successfully read

Implements yarp::os::Portable.

Definition at line 84 of file Map2DPath.h.

◆ read() [2/2]

bool yarp::dev::Nav2D::Map2DPath::read ( yarp::os::idl::WireReader & reader )

inlineoverridevirtual

Reimplemented from yarp::os::idl::WirePortable.

Definition at line 76 of file Map2DPath.h.

◆ size()

size_t Map2DPath::size ( ) const

Returns the size of the path.

Returns: the size of the path

Definition at line 79 of file Map2DPath.cpp.

◆ toString()

std::string Map2DPath::toString ( ) const

Returns text representation of the path.

Returns: a human readable string containing the path infos.

Definition at line 42 of file Map2DPath.cpp.

◆ write() [1/2]

bool yarp::dev::Nav2D::Map2DPath::write ( const yarp::os::idl::WireWriter & writer ) const

inlineoverridevirtual

Reimplemented from yarp::os::idl::WirePortable.

Definition at line 80 of file Map2DPath.h.

◆ write() [2/2]

bool yarp::dev::Nav2D::Map2DPath::write ( yarp::os::ConnectionWriter & writer ) const

inlineoverridevirtual

Write this object to a network connection.

Override this for your particular class. Be aware that depending on the nature of the connections a port has, and what protocol they use, and how efficient the YARP implementation is, this method may be called once, twice, or many times, as the result of a single call to Port::write

Parameters

writer an interface to the network connection for writing

Returns: true iff the object is successfully written

Implements yarp::os::Portable.

Definition at line 88 of file Map2DPath.h.

The documentation for this class was generated from the following files:

src/libYARP_dev/src/yarp/dev/Map2DPath.h
src/libYARP_dev/src/yarp/dev/Map2DPath.cpp
