#include <yarp/dev/OdometryData6D.h>

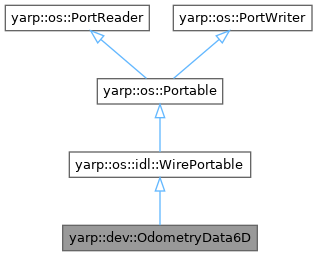

Inheritance diagram for yarp::dev::OdometryData6D:

Public Types
typedef yarp::os::idl::Unwrapped< OdometryData6D >	unwrapped

Public Member Functions
	OdometryData6D ()=default

	OdometryData6D (const double odom_x, const double odom_y, const double odom_z, const double odom_roll, const double odom_pitch, const double odom_yaw, const double base_vel_x, const double base_vel_y, const double base_vel_z, const double base_vel_roll, const double base_vel_pitch, const double base_vel_yaw, const double odom_vel_x, const double odom_vel_y, const double odom_vel_z, const double odom_vel_roll, const double odom_vel_pitch, const double odom_vel_yaw)

bool	read (yarp::os::idl::WireReader &reader) override

bool	read (yarp::os::ConnectionReader &connection) override
	Read this object from a network connection.

bool	write (const yarp::os::idl::WireWriter &writer) const override

bool	write (yarp::os::ConnectionWriter &connection) const override
	Write this object to a network connection.

std::string	toString () const

Public Member Functions inherited from yarp::os::idl::WirePortable
virtual bool	readBare (yarp::os::ConnectionReader &reader)

virtual bool	writeBare (yarp::os::ConnectionWriter &writer) const

virtual bool	readBottle (yarp::os::ConnectionReader &reader)

virtual bool	writeBottle (yarp::os::ConnectionWriter &writer) const

Public Member Functions inherited from yarp::os::Portable
virtual Type	getType () const

Public Member Functions inherited from yarp::os::PortReader
virtual	~PortReader ()
	Destructor.

virtual Type	getReadType () const

Public Member Functions inherited from yarp::os::PortWriter
virtual	~PortWriter ()
	Destructor.

virtual void	onCompletion () const
	This is called when the port has finished all writing operations.

virtual void	onCommencement () const
	This is called when the port is about to begin writing operations.

virtual yarp::os::Type	getWriteType () const

Public Attributes
double	odom_x {0.0}
	position of the robot [m], expressed in the world reference frame

double	odom_y {0.0}
	position of the robot [m], expressed in the world reference frame

double	odom_z {0.0}
	position of the robot [m], expressed in the world reference frame

double	odom_roll {0.0}
	orientation the robot [deg], expressed in the world reference frame

double	odom_pitch {0.0}
	orientation the robot [deg], expressed in the world reference frame

double	odom_yaw {0.0}
	orientation the robot [deg], expressed in the world reference frame

double	base_vel_x {0.0}
	velocity of the robot [m/s] expressed in the robot reference frame

double	base_vel_y {0.0}
	velocity of the robot [m/s] expressed in the robot reference frame

double	base_vel_z {0.0}
	velocity of the robot [m/s] expressed in the robot reference frame

double	base_vel_roll {0.0}
	angular velocity of the robot [deg/s] expressed in the robot reference frame

double	base_vel_pitch {0.0}
	angular velocity of the robot [deg/s] expressed in the robot reference frame

double	base_vel_yaw {0.0}
	angular velocity of the robot [deg/s] expressed in the robot reference frame

double	odom_vel_x {0.0}
	velocity of the robot [m/s] expressed in the world reference frame

double	odom_vel_y {0.0}
	velocity of the robot [m/s] expressed in the world reference frame

double	odom_vel_z {0.0}
	velocity of the robot [m/s] expressed in the world reference frame

double	odom_vel_roll {0.0}
	angular velocity of the robot [deg/s] expressed in the world reference frame

double	odom_vel_pitch {0.0}
	angular velocity of the robot [deg/s] expressed in the world reference frame

double	odom_vel_yaw {0.0}
	angular velocity of the robot [deg/s] expressed in the world reference frame

Additional Inherited Members
Static Public Member Functions inherited from yarp::os::Portable
static bool	copyPortable (const PortWriter &writer, PortReader &reader)
	Copy one portable to another, via writing and reading.

Detailed Description

Definition at line 21 of file OdometryData6D.h.

Member Typedef Documentation

◆ unwrapped

typedef yarp::os::idl::Unwrapped<OdometryData6D> yarp::dev::OdometryData6D::unwrapped

Definition at line 138 of file OdometryData6D.h.

Constructor & Destructor Documentation

◆ OdometryData6D() [1/2]

yarp::dev::OdometryData6D::OdometryData6D ( )

default

◆ OdometryData6D() [2/2]

yarp::dev::OdometryData6D::OdometryData6D	(	const double	odom_x,
		const double	odom_y,
		const double	odom_z,
		const double	odom_roll,
		const double	odom_pitch,
		const double	odom_yaw,
		const double	base_vel_x,
		const double	base_vel_y,
		const double	base_vel_z,
		const double	base_vel_roll,
		const double	base_vel_pitch,
		const double	base_vel_yaw,
		const double	odom_vel_x,
		const double	odom_vel_y,
		const double	odom_vel_z,
		const double	odom_vel_roll,
		const double	odom_vel_pitch,
		const double	odom_vel_yaw
	)

Definition at line 16 of file OdometryData6D.cpp.

Member Function Documentation

◆ read() [1/2]

bool yarp::dev::OdometryData6D::read ( yarp::os::ConnectionReader & reader )

overridevirtual

Read this object from a network connection.

Override this for your particular class.

Parameters

reader an interface to the network connection for reading

Returns: true iff the object is successfully read

Implements yarp::os::Portable.

Definition at line 120 of file OdometryData6D.cpp.

◆ read() [2/2]

bool yarp::dev::OdometryData6D::read ( yarp::os::idl::WireReader & reader )

overridevirtual

Reimplemented from yarp::os::idl::WirePortable.

Definition at line 57 of file OdometryData6D.cpp.

◆ toString()

std::string yarp::dev::OdometryData6D::toString ( ) const

Definition at line 209 of file OdometryData6D.cpp.

◆ write() [1/2]

bool yarp::dev::OdometryData6D::write ( const yarp::os::idl::WireWriter & writer ) const

overridevirtual

Reimplemented from yarp::os::idl::WirePortable.

Definition at line 133 of file OdometryData6D.cpp.

◆ write() [2/2]

bool yarp::dev::OdometryData6D::write ( yarp::os::ConnectionWriter & writer ) const

overridevirtual

Write this object to a network connection.

Override this for your particular class. Be aware that depending on the nature of the connections a port has, and what protocol they use, and how efficient the YARP implementation is, this method may be called once, twice, or many times, as the result of a single call to Port::write

Parameters

writer an interface to the network connection for writing

Returns: true iff the object is successfully written

Implements yarp::os::Portable.

Definition at line 196 of file OdometryData6D.cpp.

Member Data Documentation

◆ base_vel_pitch

double yarp::dev::OdometryData6D::base_vel_pitch {0.0}

angular velocity of the robot [deg/s] expressed in the robot reference frame

Definition at line 69 of file OdometryData6D.h.

◆ base_vel_roll

double yarp::dev::OdometryData6D::base_vel_roll {0.0}

angular velocity of the robot [deg/s] expressed in the robot reference frame

Definition at line 65 of file OdometryData6D.h.

◆ base_vel_x

double yarp::dev::OdometryData6D::base_vel_x {0.0}

velocity of the robot [m/s] expressed in the robot reference frame

Definition at line 53 of file OdometryData6D.h.

◆ base_vel_y

double yarp::dev::OdometryData6D::base_vel_y {0.0}

velocity of the robot [m/s] expressed in the robot reference frame

Definition at line 57 of file OdometryData6D.h.

◆ base_vel_yaw

double yarp::dev::OdometryData6D::base_vel_yaw {0.0}

angular velocity of the robot [deg/s] expressed in the robot reference frame

Definition at line 73 of file OdometryData6D.h.

◆ base_vel_z

double yarp::dev::OdometryData6D::base_vel_z {0.0}

velocity of the robot [m/s] expressed in the robot reference frame

Definition at line 61 of file OdometryData6D.h.

◆ odom_pitch

double yarp::dev::OdometryData6D::odom_pitch {0.0}

orientation the robot [deg], expressed in the world reference frame

Definition at line 45 of file OdometryData6D.h.

◆ odom_roll

double yarp::dev::OdometryData6D::odom_roll {0.0}

orientation the robot [deg], expressed in the world reference frame

Definition at line 41 of file OdometryData6D.h.

◆ odom_vel_pitch

double yarp::dev::OdometryData6D::odom_vel_pitch {0.0}

angular velocity of the robot [deg/s] expressed in the world reference frame

Definition at line 93 of file OdometryData6D.h.

◆ odom_vel_roll

double yarp::dev::OdometryData6D::odom_vel_roll {0.0}

angular velocity of the robot [deg/s] expressed in the world reference frame

Definition at line 89 of file OdometryData6D.h.

◆ odom_vel_x

double yarp::dev::OdometryData6D::odom_vel_x {0.0}

velocity of the robot [m/s] expressed in the world reference frame

Definition at line 77 of file OdometryData6D.h.

◆ odom_vel_y

double yarp::dev::OdometryData6D::odom_vel_y {0.0}

velocity of the robot [m/s] expressed in the world reference frame

Definition at line 81 of file OdometryData6D.h.

◆ odom_vel_yaw

double yarp::dev::OdometryData6D::odom_vel_yaw {0.0}

angular velocity of the robot [deg/s] expressed in the world reference frame

Definition at line 97 of file OdometryData6D.h.

◆ odom_vel_z

double yarp::dev::OdometryData6D::odom_vel_z {0.0}

velocity of the robot [m/s] expressed in the world reference frame

Definition at line 85 of file OdometryData6D.h.

◆ odom_x

double yarp::dev::OdometryData6D::odom_x {0.0}

position of the robot [m], expressed in the world reference frame

Definition at line 29 of file OdometryData6D.h.

◆ odom_y

double yarp::dev::OdometryData6D::odom_y {0.0}

position of the robot [m], expressed in the world reference frame

Definition at line 33 of file OdometryData6D.h.

◆ odom_yaw

double yarp::dev::OdometryData6D::odom_yaw {0.0}

orientation the robot [deg], expressed in the world reference frame

Definition at line 49 of file OdometryData6D.h.

◆ odom_z

double yarp::dev::OdometryData6D::odom_z {0.0}

position of the robot [m], expressed in the world reference frame

Definition at line 37 of file OdometryData6D.h.

The documentation for this class was generated from the following files:

src/libYARP_dev/src/idl_generated_code/yarp/dev/OdometryData6D.h
src/libYARP_dev/src/idl_generated_code/yarp/dev/OdometryData6D.cpp
