yarp::dev::LaserScan2D Class Reference

#include <yarp/dev/LaserScan2D.h>

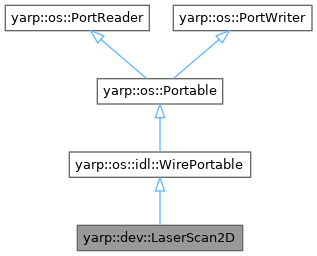

Inheritance diagram for yarp::dev::LaserScan2D:

Public Types
typedef yarp::os::idl::Unwrapped< LaserScan2D >	unwrapped

Public Member Functions
	LaserScan2D ()=default
	LaserScan2D (const double angle_min, const double angle_max, const double range_min, const double range_max, const yarp::sig::Vector &scans, const std::int32_t status)
bool	read (yarp::os::idl::WireReader &reader) override
bool	read (yarp::os::ConnectionReader &connection) override
	Read this object from a network connection.
bool	write (const yarp::os::idl::WireWriter &writer) const override
bool	write (yarp::os::ConnectionWriter &connection) const override
	Write this object to a network connection.
std::string	toString () const
Public Member Functions inherited from yarp::os::idl::WirePortable
virtual bool	readBare (yarp::os::ConnectionReader &reader)
virtual bool	writeBare (yarp::os::ConnectionWriter &writer) const
virtual bool	readBottle (yarp::os::ConnectionReader &reader)
virtual bool	writeBottle (yarp::os::ConnectionWriter &writer) const
Public Member Functions inherited from yarp::os::Portable
virtual Type	getType () const
Public Member Functions inherited from yarp::os::PortReader
virtual	~PortReader ()
	Destructor.
virtual Type	getReadType () const
Public Member Functions inherited from yarp::os::PortWriter
virtual	~PortWriter ()
	Destructor.
virtual void	onCompletion () const
	This is called when the port has finished all writing operations.
virtual void	onCommencement () const
	This is called when the port is about to begin writing operations.
virtual yarp::os::Type	getWriteType () const

Public Attributes
double	angle_min {0.0}
	first angle of the scan [deg]
double	angle_max {0.0}
	last angle of the scan [deg]
double	range_min {0.0}
	the minimum distance of the scan [m]
double	range_max {0.0}
	the maximum distance of the scan [m]
yarp::sig::Vector	scans {}
	the scan data, measured in [m].
std::int32_t	status {3}
	the status of the device.

Additional Inherited Members
Static Public Member Functions inherited from yarp::os::Portable
static bool	copyPortable (const PortWriter &writer, PortReader &reader)
	Copy one portable to another, via writing and reading.

Detailed Description

Definition at line 22 of file LaserScan2D.h.

Member Typedef Documentation

unwrapped

typedef yarp::os::idl::Unwrapped<LaserScan2D> yarp::dev::LaserScan2D::unwrapped

Definition at line 79 of file LaserScan2D.h.

Constructor & Destructor Documentation

LaserScan2D() [1/2]

yarp::dev::LaserScan2D::LaserScan2D ( )

default

LaserScan2D() [2/2]

yarp::dev::LaserScan2D::LaserScan2D	(	const double	angle_min,
		const double	angle_max,
		const double	range_min,
		const double	range_max,
		const yarp::sig::Vector &	scans,
		const std::int32_t	status
	)

Definition at line 16 of file LaserScan2D.cpp.

Member Function Documentation

read() [1/2]

bool yarp::dev::LaserScan2D::read ( yarp::os::ConnectionReader &  reader )

overridevirtual

Read this object from a network connection.

Override this for your particular class.

Parameters

reader

an interface to the network connection for reading

Returns

true iff the object is successfully read

Implements yarp::os::Portable.

Definition at line 60 of file LaserScan2D.cpp.

read() [2/2]

bool yarp::dev::LaserScan2D::read ( yarp::os::idl::WireReader &  reader )

overridevirtual

Reimplemented from yarp::os::idl::WirePortable.

Definition at line 33 of file LaserScan2D.cpp.

toString()

std::string yarp::dev::LaserScan2D::toString

(

)

const

Definition at line 113 of file LaserScan2D.cpp.

write() [1/2]

bool yarp::dev::LaserScan2D::write ( const yarp::os::idl::WireWriter &  writer ) const

overridevirtual

Reimplemented from yarp::os::idl::WirePortable.

Definition at line 73 of file LaserScan2D.cpp.

write() [2/2]

bool yarp::dev::LaserScan2D::write ( yarp::os::ConnectionWriter &  writer ) const

overridevirtual

Write this object to a network connection.

Override this for your particular class. Be aware that depending on the nature of the connections a port has, and what protocol they use, and how efficient the YARP implementation is, this method may be called once, twice, or many times, as the result of a single call to Port::write

Parameters

writer

an interface to the network connection for writing

Returns

true iff the object is successfully written

Implements yarp::os::Portable.

Definition at line 100 of file LaserScan2D.cpp.

Member Data Documentation

angle_max

double yarp::dev::LaserScan2D::angle_max {0.0}

last angle of the scan [deg]

Definition at line 34 of file LaserScan2D.h.

angle_min

double yarp::dev::LaserScan2D::angle_min {0.0}

first angle of the scan [deg]

Definition at line 30 of file LaserScan2D.h.

range_max

double yarp::dev::LaserScan2D::range_max {0.0}

the maximum distance of the scan [m]

Definition at line 42 of file LaserScan2D.h.

range_min

double yarp::dev::LaserScan2D::range_min {0.0}

the minimum distance of the scan [m]

Definition at line 38 of file LaserScan2D.h.

scans

yarp::sig::Vector yarp::dev::LaserScan2D::scans {}

the scan data, measured in [m].

The angular increment of each ray is obtained by (angle_max-angle_min)/num_of_elements. Invalid data are represented as std::inf.

Definition at line 46 of file LaserScan2D.h.

status

std::int32_t yarp::dev::LaserScan2D::status {3}

the status of the device.

See yarp::dev::IRangefinder2D::Device_status. The default value is DEVICE_TIMEOUT.

Definition at line 50 of file LaserScan2D.h.

---

The documentation for this class was generated from the following files:

• src/libYARP_dev/src/idl_generated_code/yarp/dev/LaserScan2D.h
• src/libYARP_dev/src/idl_generated_code/yarp/dev/LaserScan2D.cpp
