IMap2DMsgs_store_path_RPC_helper::Command Class Reference

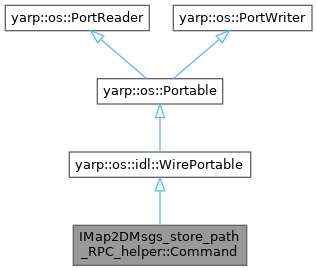

+ Inheritance diagram for IMap2DMsgs_store_path_RPC_helper::Command:

Public Member Functions

 Command ()=default

 Command (const std::string &path_name, const yarp::dev::Nav2D::Map2DPath &path)

 ~Command () override=default

bool write (yarp::os::ConnectionWriter &connection) const override
 Write this object to a network connection.

bool read (yarp::os::ConnectionReader &connection) override
 Read this object from a network connection.

bool write (const yarp::os::idl::WireWriter &writer) const override

bool writeTag (const yarp::os::idl::WireWriter &writer) const

bool writeArgs (const yarp::os::idl::WireWriter &writer) const

bool read (yarp::os::idl::WireReader &reader) override

bool readTag (yarp::os::idl::WireReader &reader)

bool readArgs (yarp::os::idl::WireReader &reader)

- Public Member Functions inherited from yarp::os::idl::WirePortable
virtual bool readBare (yarp::os::ConnectionReader &reader)

virtual bool writeBare (yarp::os::ConnectionWriter &writer) const

virtual bool readBottle (yarp::os::ConnectionReader &reader)

virtual bool writeBottle (yarp::os::ConnectionWriter &writer) const

- Public Member Functions inherited from yarp::os::Portable
virtual Type getType () const

- Public Member Functions inherited from yarp::os::PortReader
virtual ~PortReader ()
 Destructor.

virtual Type getReadType () const

- Public Member Functions inherited from yarp::os::PortWriter
virtual ~PortWriter ()
 Destructor.

virtual void onCompletion () const
 This is called when the port has finished all writing operations.

virtual void onCommencement () const
 This is called when the port is about to begin writing operations.

virtual yarp::os::Type getWriteType () const


Public Attributes

std::string path_name {}

yarp::dev::Nav2D::Map2DPath path {}


Additional Inherited Members

- Static Public Member Functions inherited from yarp::os::Portable
static bool copyPortable (const PortWriter &writer, PortReader &reader)
 Copy one portable to another, via writing and reading.


Detailed Description

Definition at line 460 of file IMap2DMsgs.cpp.

Constructor & Destructor Documentation

◆ Command() [1/2]

IMap2DMsgs_store_path_RPC_helper::Command::Command ( )
default

◆ Command() [2/2]

IMap2DMsgs_store_path_RPC_helper::Command::Command ( const std::string &  path_name,
const yarp::dev::Nav2D::Map2DPath path
)

Definition at line 3245 of file IMap2DMsgs.cpp.

◆ ~Command()

IMap2DMsgs_store_path_RPC_helper::Command::~Command ( )
overridedefault

Member Function Documentation

◆ read() [1/2]

bool IMap2DMsgs_store_path_RPC_helper::Command::read ( yarp::os::ConnectionReader reader)
overridevirtual

Read this object from a network connection.

Override this for your particular class.

Parameters
readeran interface to the network connection for reading
Returns
true iff the object is successfully read

Implements yarp::os::Portable.

Definition at line 3260 of file IMap2DMsgs.cpp.

◆ read() [2/2]

bool IMap2DMsgs_store_path_RPC_helper::Command::read ( yarp::os::idl::WireReader reader)
overridevirtual

Reimplemented from yarp::os::idl::WirePortable.

Definition at line 3300 of file IMap2DMsgs.cpp.

◆ readArgs()

bool IMap2DMsgs_store_path_RPC_helper::Command::readArgs ( yarp::os::idl::WireReader reader)

Definition at line 3324 of file IMap2DMsgs.cpp.

◆ readTag()

bool IMap2DMsgs_store_path_RPC_helper::Command::readTag ( yarp::os::idl::WireReader reader)

Definition at line 3311 of file IMap2DMsgs.cpp.

◆ write() [1/2]

bool IMap2DMsgs_store_path_RPC_helper::Command::write ( const yarp::os::idl::WireWriter writer) const
overridevirtual

Reimplemented from yarp::os::idl::WirePortable.

Definition at line 3270 of file IMap2DMsgs.cpp.

◆ write() [2/2]

bool IMap2DMsgs_store_path_RPC_helper::Command::write ( yarp::os::ConnectionWriter writer) const
overridevirtual

Write this object to a network connection.

Override this for your particular class. Be aware that depending on the nature of the connections a port has, and what protocol they use, and how efficient the YARP implementation is, this method may be called once, twice, or many times, as the result of a single call to Port::write

Parameters
writeran interface to the network connection for writing
Returns
true iff the object is successfully written

Implements yarp::os::Portable.

Definition at line 3251 of file IMap2DMsgs.cpp.

◆ writeArgs()

bool IMap2DMsgs_store_path_RPC_helper::Command::writeArgs ( const yarp::os::idl::WireWriter writer) const

Definition at line 3289 of file IMap2DMsgs.cpp.

◆ writeTag()

bool IMap2DMsgs_store_path_RPC_helper::Command::writeTag ( const yarp::os::idl::WireWriter writer) const

Definition at line 3281 of file IMap2DMsgs.cpp.

Member Data Documentation

◆ path

yarp::dev::Nav2D::Map2DPath IMap2DMsgs_store_path_RPC_helper::Command::path {}

Definition at line 481 of file IMap2DMsgs.cpp.

◆ path_name

std::string IMap2DMsgs_store_path_RPC_helper::Command::path_name {}

Definition at line 480 of file IMap2DMsgs.cpp.


The documentation for this class was generated from the following file:
