FakeJoypad Class Reference

FakeJoypad : fake device implementing the device interface More...

#include <fake/fakeJoypad/FakeJoypad.h>

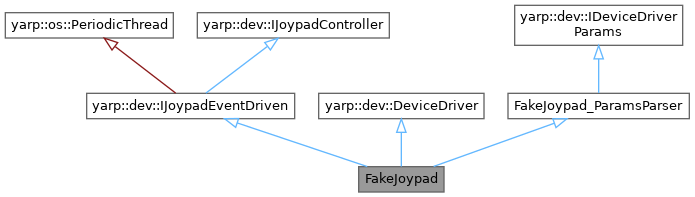

+ Inheritance diagram for FakeJoypad:

Public Member Functions

 FakeJoypad ()

virtual ~FakeJoypad ()

bool open (yarp::os::Searchable &config) override
 Open the DeviceDriver.

bool close () override
 Close the DeviceDriver.

yarp::dev::ReturnValue getAxisCount (size_t &axis_count) override
 Get number of axes.

yarp::dev::ReturnValue getButtonCount (size_t &button_count) override
 Get number of buttons.

yarp::dev::ReturnValue getHatCount (size_t &hat_count) override
 Get number of hats.

yarp::dev::ReturnValue getTrackballCount (size_t &trackball_count) override
 Get number of trackballs.

yarp::dev::ReturnValue getTouchSurfaceCount (size_t &touch_count) override
 Get the number of touch surface.

yarp::dev::ReturnValue getStickCount (size_t &stick_count) override
 Get the number of the sticks.

yarp::dev::ReturnValue getButton (size_t button_id, double &value) override
 Get the value of a button.

yarp::dev::ReturnValue getTrackball (size_t trackball_id, yarp::dev::TrackballData &value) override
 Get the axes change of a Trackball.

yarp::dev::ReturnValue getHat (size_t hat_id, unsigned char &value) override
 Get the value of an Hat.

yarp::dev::ReturnValue getAxis (size_t axis_id, double &value) override
 Get the value of an axis if present, return false otherwise.

yarp::dev::ReturnValue getStick (size_t stick_id, yarp::dev::StickData &value, JoypadCtrl_coordinateMode coordinate_mode) override
 Get the value of a stick if present, return false otherwise.

yarp::dev::ReturnValue getTouch (size_t touch_id, std::vector< yarp::dev::TouchData > &value) override
 Get the value of a touch if present, return false otherwise.

- Public Member Functions inherited from yarp::dev::IJoypadController
virtual ~IJoypadController ()
 Destructor.

virtual yarp::dev::ReturnValue getAllAxes (std::vector< double > &values)
 Get the values of all available joystick axes.

- Public Member Functions inherited from yarp::dev::DeviceDriver
 DeviceDriver ()

 DeviceDriver (const DeviceDriver &other)=delete

 DeviceDriver (DeviceDriver &&other) noexcept=delete

DeviceDriver & operator= (const DeviceDriver &other)=delete

DeviceDriver & operator= (DeviceDriver &&other) noexcept=delete

virtual ~DeviceDriver ()

virtual std::string id () const
 Return the id assigned to the PolyDriver.

virtual void setId (const std::string &id)
 Set the id for this device.

template<class T >
bool view (T *&x)
 Get an interface to the device driver.

virtual DeviceDriver * getImplementation ()
 Some drivers are bureaucrats, pointing at others.

- Public Member Functions inherited from FakeJoypad_ParamsParser
 FakeJoypad_ParamsParser ()

 ~FakeJoypad_ParamsParser () override=default

bool parseParams (const yarp::os::Searchable &config) override
 Parse the DeviceDriver parameters.

std::string getDeviceClassName () const override
 Get the name of the DeviceDriver class.

std::string getDeviceName () const override
 Get the name of the device (i.e.

std::string getDocumentationOfDeviceParams () const override
 Get the documentation of the DeviceDriver's parameters.

std::vector< std::string > getListOfParams () const override
 Return a list of all params used by the device.

bool getParamValue (const std::string &paramName, std::string &paramValue) const override
 Return the value (represented as a string) of the requested parameter.

std::string getConfiguration () const override
 Return the configuration of the device.

- Public Member Functions inherited from yarp::dev::IDeviceDriverParams
virtual ~IDeviceDriverParams ()


Additional Inherited Members

- Public Types inherited from yarp::dev::IJoypadController
enum class  JoypadCtrl_coordinateMode {
  JypCtrlcoord_POLAR = 0 ,
  JypCtrlcoord_CARTESIAN = 1
}

- Public Attributes inherited from FakeJoypad_ParamsParser
const std::string m_device_classname = {"FakeJoypad"}

const std::string m_device_name = {"fakeJoypad"}

bool m_parser_is_strict = false

const parser_version_type m_parser_version = {}

std::string m_provided_configuration

const std::string m_rpc_port_name_defaultValue = {"/fakeJoypad/rpc"}

std::string m_rpc_port_name = {"/fakeJoypad/rpc"}


Detailed Description

FakeJoypad : fake device implementing the device interface

Parameters required by this device are shown in class: FakeJoypad_ParamsParser

Definition at line 21 of file FakeJoypad.h.

Constructor & Destructor Documentation

◆ FakeJoypad()

FakeJoypad::FakeJoypad ( )

Definition at line 22 of file FakeJoypad.cpp.

◆ ~FakeJoypad()

FakeJoypad::~FakeJoypad ( )
virtual

Definition at line 27 of file FakeJoypad.cpp.

Member Function Documentation

◆ close()

bool FakeJoypad::close ( )
overridevirtual

Close the DeviceDriver.

Returns
true/false on success/failure.

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 38 of file FakeJoypad.cpp.

◆ getAxis()

ReturnValue FakeJoypad::getAxis ( size_t  axis_id,
double &  value
)
overridevirtual

Get the value of an axis if present, return false otherwise.

Parameters
axis_idId of the axis to get. must be > -1 && < getAxisCount(), return false otherwise.
valuereference to be valued. the absolute boundaries for the values should be -1.0 and 1.0 However the actual range depends on the physical device (example: analog trigger does not have a central position thus can give a value from 0.0 to 0.1).
Returns
true if succeeded, false otherwise.

Implements yarp::dev::IJoypadController.

Definition at line 90 of file FakeJoypad.cpp.

◆ getAxisCount()

ReturnValue FakeJoypad::getAxisCount ( size_t &  axis_count)
overridevirtual

Get number of axes.

Parameters
axes_countunsigned int reference that will contain the result.
Returns
true if succeeded. false otherwise.

Implements yarp::dev::IJoypadController.

Definition at line 43 of file FakeJoypad.cpp.

◆ getButton()

ReturnValue FakeJoypad::getButton ( size_t  button_id,
double &  value
)
overridevirtual

Get the value of a button.

From 0-unpressed to 1-fullpressed and values in the middle in the analog-face-button case.

Parameters
button_idId of the button to get. Must be > -1 && < getButtonCount(), return false otherwise
valuereference to be valued. The value will be from 0.0 (not even touched) to 1.0 (fully pressed)
Returns
true if succeeded, false otherwise

Implements yarp::dev::IJoypadController.

Definition at line 79 of file FakeJoypad.cpp.

◆ getButtonCount()

ReturnValue FakeJoypad::getButtonCount ( size_t &  button_count)
overridevirtual

Get number of buttons.

Parameters
button_countunsigned int reference that will contain the result.
Returns
true if succeeded. false otherwise.

Implements yarp::dev::IJoypadController.

Definition at line 49 of file FakeJoypad.cpp.

◆ getHat()

ReturnValue FakeJoypad::getHat ( size_t  hat_id,
unsigned char &  value
)
overridevirtual

Get the value of an Hat.

Parameters
hat_idId of the POV hat to get. Must be > -1 && < getHatCount(), return false otherwise.
valuereference to be valued. use the YRPJOY_HAT_ macro series to get the currently pressed directions.
Returns
true if succeeded, false otherwise.

Implements yarp::dev::IJoypadController.

Definition at line 137 of file FakeJoypad.cpp.

◆ getHatCount()

ReturnValue FakeJoypad::getHatCount ( size_t &  Hat_count)
overridevirtual

Get number of hats.

Parameters
Hat_countunsigned int reference that will contain the result.
Returns
true if succeeded. false otherwise.

Implements yarp::dev::IJoypadController.

Definition at line 61 of file FakeJoypad.cpp.

◆ getStick()

ReturnValue FakeJoypad::getStick ( size_t  stick_id,
yarp::dev::StickData &  value,
JoypadCtrl_coordinateMode  coordinate_mode
)
overridevirtual

Get the value of a stick if present, return false otherwise.

Parameters
stick_idId of the stick to get. must be > -1 && < getStickCount(), return false otherwise.
valuea vector that will contain the joystick position. the size of the vector will give you the Number of degrees of freedom and the value will be from -1.0 to 1.0.
coordinate_modeto get data in cartesian mode or polar mode.
Returns
true if succeeded, false otherwise.

Implements yarp::dev::IJoypadController.

Definition at line 101 of file FakeJoypad.cpp.

◆ getStickCount()

ReturnValue FakeJoypad::getStickCount ( size_t &  stick_count)
overridevirtual

Get the number of the sticks.

Parameters
stick_countunsigned int reference that will contain the result.
Returns
bool if succeeded, false otherwise.

Implements yarp::dev::IJoypadController.

Definition at line 73 of file FakeJoypad.cpp.

◆ getTouch()

ReturnValue FakeJoypad::getTouch ( size_t  touch_id,
std::vector< yarp::dev::TouchData > &  value
)
overridevirtual

Get the value of a touch if present, return false otherwise.

Parameters
valuea vector that will contain the touch values normalized from 0.0 to 1.0.
Returns
true if succeeded, false otherwise.

Implements yarp::dev::IJoypadController.

Definition at line 121 of file FakeJoypad.cpp.

◆ getTouchSurfaceCount()

ReturnValue FakeJoypad::getTouchSurfaceCount ( size_t &  touch_count)
overridevirtual

Get the number of touch surface.

Multiple touch surface can represent either multiple physical monotouch surface or a multitouch surface or a combination of the two.

Parameters
touch_countunsigned int reference that will contain the result.
Returns
true if succeeded. false otherwise.

Implements yarp::dev::IJoypadController.

Definition at line 67 of file FakeJoypad.cpp.

◆ getTrackball()

ReturnValue FakeJoypad::getTrackball ( size_t  trackball_id,
yarp::dev::TrackballData &  value
)
overridevirtual

Get the axes change of a Trackball.

Parameters
trackball_idId of the Trackball to get. Must be > -1 && < getTrackballCount(), return false otherwise.
valuereference to be valued. the value will be from 0.0 (not moving) to 1.0 (full velocity).
Returns
true if succeeded, false otherwise.

Implements yarp::dev::IJoypadController.

Definition at line 148 of file FakeJoypad.cpp.

◆ getTrackballCount()

ReturnValue FakeJoypad::getTrackballCount ( size_t &  Trackball_count)
overridevirtual

Get number of trackballs.

Parameters
Trackball_countunsigned int reference that will contain the result.
Returns
true if succeeded. false otherwise.

Implements yarp::dev::IJoypadController.

Definition at line 55 of file FakeJoypad.cpp.

◆ open()

bool FakeJoypad::open ( yarp::os::Searchable &  config)
overridevirtual

Open the DeviceDriver.

Parameters
configis a list of parameters for the device. Which parameters are effective for your device can vary. If there is no example for your device, you can run the "yarpdev" program with the verbose flag set to probe what parameters the device is checking. If that fails too, you'll need to read the source code (please nag one of the yarp developers to add documentation for your device).
Returns
true/false upon success/failure

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 31 of file FakeJoypad.cpp.


The documentation for this class was generated from the following files:
