yarp::dev::ReturnValue Class Reference

#include <yarp/dev/ReturnValue.h>

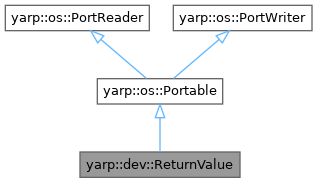

Inheritance diagram for yarp::dev::ReturnValue:

Public Types
enum class	return_code {   return_value_ok = 0 ,   return_value_error_generic = 1 ,   return_value_error_not_implemented_by_device = 2 ,   return_value_error_nws_nwc_communication_error = 3 ,   return_value_error_deprecated = 4 ,   return_value_error_method_failed = 5 ,   return_value_error_not_ready = 6 ,   return_value_uninitialized = 100 }

Public Member Functions
	ReturnValue ()
	~ReturnValue ()=default
	ReturnValue (return_code code)
	ReturnValue (const ReturnValue &other)=default
ReturnValue &	operator&& (const ReturnValue &other)
ReturnValue &	operator&= (const ReturnValue &other)
bool	operator== (const return_code &code) const
bool	operator== (const ReturnValue &value) const
std::string	toString ()
	operator bool () const
bool	read (yarp::os::ConnectionReader &connection) override
	Read this object from a network connection.
bool	write (yarp::os::ConnectionWriter &connection) const override
	Write this object to a network connection.
Public Member Functions inherited from yarp::os::Portable
virtual Type	getType () const
Public Member Functions inherited from yarp::os::PortReader
virtual	~PortReader ()
	Destructor.
virtual Type	getReadType () const
Public Member Functions inherited from yarp::os::PortWriter
virtual	~PortWriter ()
	Destructor.
virtual void	onCompletion () const
	This is called when the port has finished all writing operations.
virtual void	onCommencement () const
	This is called when the port is about to begin writing operations.
virtual yarp::os::Type	getWriteType () const

Additional Inherited Members
Static Public Member Functions inherited from yarp::os::Portable
static bool	copyPortable (const PortWriter &writer, PortReader &reader)
	Copy one portable to another, via writing and reading.

Detailed Description

Definition at line 32 of file ReturnValue.h.

Member Enumeration Documentation

return_code

enum class yarp::dev::ReturnValue::return_code

strong

Enumerator
return_value_ok
return_value_error_generic	Method was successfully executed.
return_value_error_not_implemented_by_device
return_value_error_nws_nwc_communication_error	Method is not (yet) implemented.
return_value_error_deprecated	Command answer lost during network transmission. Status unknown.
return_value_error_method_failed	Method is deprecated.
return_value_error_not_ready	Method failed due to invalid internal status/invalid request.
return_value_uninitialized	Method failed because some initialization is missing.

Definition at line 35 of file ReturnValue.h.

Constructor & Destructor Documentation

ReturnValue() [1/3]

ReturnValue::ReturnValue

(

)

Definition at line 26 of file ReturnValue.cpp.

~ReturnValue()

yarp::dev::ReturnValue::~ReturnValue ( )

default

ReturnValue() [2/3]

ReturnValue::ReturnValue

(

return_code

code

)

Definition at line 128 of file ReturnValue.cpp.

ReturnValue() [3/3]

yarp::dev::ReturnValue::ReturnValue ( const ReturnValue &  other )

default

Member Function Documentation

operator bool()

ReturnValue::operator bool

(

)

const

Definition at line 123 of file ReturnValue.cpp.

operator&&()

ReturnValue & ReturnValue::operator&&

(

const ReturnValue &

other

)

Definition at line 44 of file ReturnValue.cpp.

operator&=()

ReturnValue & ReturnValue::operator&=

(

const ReturnValue &

other

)

Definition at line 64 of file ReturnValue.cpp.

operator==() [1/2]

bool ReturnValue::operator==

(

const return_code &

code

)

const

Definition at line 133 of file ReturnValue.cpp.

operator==() [2/2]

bool ReturnValue::operator==

(

const ReturnValue &

value

)

const

Definition at line 139 of file ReturnValue.cpp.

read()

bool ReturnValue::read ( yarp::os::ConnectionReader &  reader )

overridevirtual

Read this object from a network connection.

Override this for your particular class.

Parameters

reader

an interface to the network connection for reading

Returns

true iff the object is successfully read

Implements yarp::os::Portable.

Definition at line 145 of file ReturnValue.cpp.

toString()

std::string ReturnValue::toString

(

)

Definition at line 99 of file ReturnValue.cpp.

write()

bool ReturnValue::write ( yarp::os::ConnectionWriter &  writer ) const

overridevirtual

Write this object to a network connection.

Override this for your particular class. Be aware that depending on the nature of the connections a port has, and what protocol they use, and how efficient the YARP implementation is, this method may be called once, twice, or many times, as the result of a single call to Port::write

Parameters

writer

an interface to the network connection for writing

Returns

true iff the object is successfully written

Implements yarp::os::Portable.

Definition at line 157 of file ReturnValue.cpp.

---

The documentation for this class was generated from the following files:

• src/libYARP_dev/src/yarp/dev/ReturnValue.h
• src/libYARP_dev/src/yarp/dev/ReturnValue.cpp
