Battery_nwc_yarp: The client side of any IBattery capable device. More...

#include <networkWrappers/battery_nwc_yarp/Battery_nwc_yarp.h>

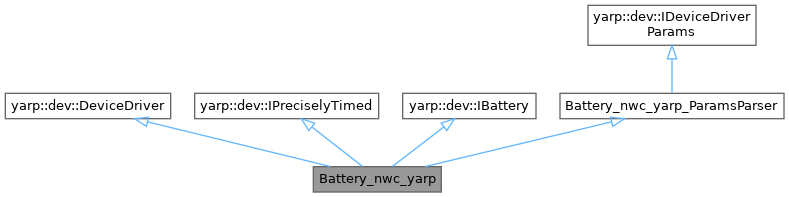

Inheritance diagram for Battery_nwc_yarp:

Public Member Functions
bool	open (yarp::os::Searchable &config) override
	Open the DeviceDriver.

bool	close () override
	Close the DeviceDriver.

yarp::os::Stamp	getLastInputStamp () override
	Get the time stamp for the last read data.

bool	getBatteryVoltage (double &voltage) override
	Get the instantaneous voltage measurement.

bool	getBatteryCurrent (double &current) override
	Get the instantaneous current measurement.

bool	getBatteryCharge (double &charge) override
	get the battery status of charge

bool	getBatteryStatus (Battery_status &status) override
	get the battery status

bool	getBatteryInfo (std::string &battery_info) override
	get the battery hardware charactestics (e.g.

bool	getBatteryTemperature (double &temperature) override
	get the battery temperature

Public Member Functions inherited from yarp::dev::DeviceDriver
	DeviceDriver ()

	DeviceDriver (const DeviceDriver &other)=delete

	DeviceDriver (DeviceDriver &&other) noexcept=delete

DeviceDriver &	operator= (const DeviceDriver &other)=delete

DeviceDriver &	operator= (DeviceDriver &&other) noexcept=delete

virtual	~DeviceDriver ()

virtual std::string	id () const
	Return the id assigned to the PolyDriver.

virtual void	setId (const std::string &id)
	Set the id for this device.

template<class T >
bool	view (T *&x)
	Get an interface to the device driver.

virtual DeviceDriver *	getImplementation ()
	Some drivers are bureaucrats, pointing at others.

Public Member Functions inherited from yarp::dev::IPreciselyTimed
virtual	~IPreciselyTimed ()

Public Member Functions inherited from yarp::dev::IBattery
virtual	~IBattery ()

Public Member Functions inherited from Battery_nwc_yarp_ParamsParser
	Battery_nwc_yarp_ParamsParser ()

	~Battery_nwc_yarp_ParamsParser () override=default

bool	parseParams (const yarp::os::Searchable &config) override
	Parse the DeviceDriver parameters.

std::string	getDeviceClassName () const override
	Get the name of the DeviceDriver class.

std::string	getDeviceName () const override
	Get the name of the device (i.e.

std::string	getDocumentationOfDeviceParams () const override
	Get the documentation of the DeviceDriver's parameters.

std::vector< std::string >	getListOfParams () const override
	Return a list of all params used by the device.

Public Member Functions inherited from yarp::dev::IDeviceDriverParams
virtual	~IDeviceDriverParams ()

Protected Attributes
BatteryInputPortProcessor	inputPort

yarp::os::Port	rpcPort

yarp::os::Stamp	lastTs

std::string	deviceId

Additional Inherited Members
Public Types inherited from yarp::dev::IBattery
enum	Battery_status { BATTERY_OK_STANDBY = 0 , BATTERY_OK_IN_CHARGE = 1 , BATTERY_OK_IN_USE = 2 , BATTERY_GENERAL_ERROR = 3 , BATTERY_TIMEOUT = 4 , BATTERY_LOW_WARNING = 5 , BATTERY_CRITICAL_WARNING = 6 }

Public Attributes inherited from Battery_nwc_yarp_ParamsParser
const std::string	m_device_classname = {"Battery_nwc_yarp"}

const std::string	m_device_name = {"battery_nwc_yarp"}

bool	m_parser_is_strict = false

const parser_version_type	m_parser_version = {}

const std::string	m_local_defaultValue = {""}

const std::string	m_remote_defaultValue = {""}

const std::string	m_carrier_defaultValue = {"tcp"}

std::string	m_local = {}

std::string	m_remote = {}

std::string	m_carrier = {"tcp"}

Detailed Description

Battery_nwc_yarp: The client side of any IBattery capable device.

Parameters required by this device are shown in class: Battery_nwc_yarp_ParamsParser

Definition at line 73 of file Battery_nwc_yarp.h.

Member Function Documentation

◆ close()

bool Battery_nwc_yarp::close ( )

overridevirtual

Close the DeviceDriver.

Returns: true/false on success/failure.

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 218 of file Battery_nwc_yarp.cpp.

◆ getBatteryCharge()

bool Battery_nwc_yarp::getBatteryCharge ( double & charge )

overridevirtual

get the battery status of charge

Parameters

charge the charge measurement (0-100%)

Returns: true/false.

Implements yarp::dev::IBattery.

Definition at line 237 of file Battery_nwc_yarp.cpp.

◆ getBatteryCurrent()

bool Battery_nwc_yarp::getBatteryCurrent ( double & current )

overridevirtual

Get the instantaneous current measurement.

Parameters

current the current measurement

Returns: true/false.

Implements yarp::dev::IBattery.

Definition at line 231 of file Battery_nwc_yarp.cpp.

◆ getBatteryInfo()

bool Battery_nwc_yarp::getBatteryInfo ( std::string & battery_info )

overridevirtual

get the battery hardware charactestics (e.g.

max voltage etc)

Parameters

a	string containing the battery infos

Returns: true/false.

Implements yarp::dev::IBattery.

Definition at line 255 of file Battery_nwc_yarp.cpp.

◆ getBatteryStatus()

bool Battery_nwc_yarp::getBatteryStatus ( Battery_status & status )

overridevirtual

get the battery status

Parameters

status the battery status

Returns: true/false.

Implements yarp::dev::IBattery.

Definition at line 243 of file Battery_nwc_yarp.cpp.

◆ getBatteryTemperature()

bool Battery_nwc_yarp::getBatteryTemperature ( double & temperature )

overridevirtual

get the battery temperature

Parameters

temprature the battery temperature

Returns: true/false.

Implements yarp::dev::IBattery.

Definition at line 249 of file Battery_nwc_yarp.cpp.

◆ getBatteryVoltage()

bool Battery_nwc_yarp::getBatteryVoltage ( double & voltage )

overridevirtual

Get the instantaneous voltage measurement.

Parameters

voltage the voltage measurement

Returns: true/false.

Implements yarp::dev::IBattery.

Definition at line 225 of file Battery_nwc_yarp.cpp.

◆ getLastInputStamp()

Stamp Battery_nwc_yarp::getLastInputStamp ( )

overridevirtual

Get the time stamp for the last read data.

Returns: last time stamp.

Implements yarp::dev::IPreciselyTimed.

Definition at line 269 of file Battery_nwc_yarp.cpp.

◆ open()

bool Battery_nwc_yarp::open ( yarp::os::Searchable & config )

overridevirtual

Open the DeviceDriver.

Parameters

config is a list of parameters for the device. Which parameters are effective for your device can vary. See device invocation examples. If there is no example for your device, you can run the "yarpdev" program with the verbose flag set to probe what parameters the device is checking. If that fails too, you'll need to read the source code (please nag one of the yarp developers to add documentation for your device).

Returns: true/false upon success/failure

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 175 of file Battery_nwc_yarp.cpp.

Member Data Documentation

◆ deviceId

std::string Battery_nwc_yarp::deviceId

protected

Definition at line 83 of file Battery_nwc_yarp.h.

◆ inputPort

BatteryInputPortProcessor Battery_nwc_yarp::inputPort

protected

Definition at line 80 of file Battery_nwc_yarp.h.

◆ lastTs

yarp::os::Stamp Battery_nwc_yarp::lastTs

protected

Definition at line 82 of file Battery_nwc_yarp.h.

◆ rpcPort

yarp::os::Port Battery_nwc_yarp::rpcPort

protected

Definition at line 81 of file Battery_nwc_yarp.h.

The documentation for this class was generated from the following files:

src/devices/networkWrappers/battery_nwc_yarp/Battery_nwc_yarp.h
src/devices/networkWrappers/battery_nwc_yarp/Battery_nwc_yarp.cpp
