robotDescription_nwc_yarp: This client device is used to connect to a robotDescription_nws_yarp and ask info about the currently opened devices. More...

#include <networkWrappers/robotDescription_nwc_yarp/RobotDescription_nwc_yarp.h>

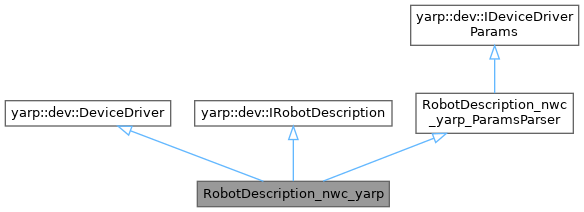

Inheritance diagram for RobotDescription_nwc_yarp:

Public Member Functions
bool	open (yarp::os::Searchable &config) override
	Open the DeviceDriver.

bool	close () override
	Close the DeviceDriver.

yarp::dev::ReturnValue	getAllDevices (std::vector< yarp::dev::DeviceDescription > &dev_list) override
	Ask the complete list of all yarp device drivers registered by a robot description server.

yarp::dev::ReturnValue	getAllDevicesByType (const std::string &type, std::vector< yarp::dev::DeviceDescription > &dev_list) override
	Ask a list of all registered yarp device drivers whose type corresponds to the given param.

yarp::dev::ReturnValue	registerDevice (const yarp::dev::DeviceDescription &dev) override
	Register a new running yarp device into a robot description server.

yarp::dev::ReturnValue	unregisterDevice (const std::string &device_name) override
	Unregister a running yarp device from a robot description server.

yarp::dev::ReturnValue	unregisterAll () override
	Unregister all the devices.

Public Member Functions inherited from yarp::dev::DeviceDriver
	DeviceDriver ()

	DeviceDriver (const DeviceDriver &other)=delete

	DeviceDriver (DeviceDriver &&other) noexcept=delete

DeviceDriver &	operator= (const DeviceDriver &other)=delete

DeviceDriver &	operator= (DeviceDriver &&other) noexcept=delete

virtual	~DeviceDriver ()

virtual std::string	id () const
	Return the id assigned to the PolyDriver.

virtual void	setId (const std::string &id)
	Set the id for this device.

template<class T >
bool	view (T *&x)
	Get an interface to the device driver.

virtual DeviceDriver *	getImplementation ()
	Some drivers are bureaucrats, pointing at others.

Public Member Functions inherited from yarp::dev::IRobotDescription
virtual	~IRobotDescription ()
	Destructor.

Public Member Functions inherited from RobotDescription_nwc_yarp_ParamsParser
	RobotDescription_nwc_yarp_ParamsParser ()

	~RobotDescription_nwc_yarp_ParamsParser () override=default

bool	parseParams (const yarp::os::Searchable &config) override
	Parse the DeviceDriver parameters.

std::string	getDeviceClassName () const override
	Get the name of the DeviceDriver class.

std::string	getDeviceName () const override
	Get the name of the device (i.e.

std::string	getDocumentationOfDeviceParams () const override
	Get the documentation of the DeviceDriver's parameters.

std::vector< std::string >	getListOfParams () const override
	Return a list of all params used by the device.

bool	getParamValue (const std::string &paramName, std::string &paramValue) const override
	Return the value (represented as a string) of the requested parameter.

std::string	getConfiguration () const override
	Return the configuration of the device.

Public Member Functions inherited from yarp::dev::IDeviceDriverParams
virtual	~IDeviceDriverParams ()

Protected Attributes
std::mutex	m_mutex

yarp::os::Port	m_rpc_port

IRobotDescriptionMsgs	m_RPC

Additional Inherited Members
Public Attributes inherited from RobotDescription_nwc_yarp_ParamsParser
const std::string	m_device_classname = {"RobotDescription_nwc_yarp"}

const std::string	m_device_name = {"robotDescription_nwc_yarp"}

bool	m_parser_is_strict = false

const parser_version_type	m_parser_version = {}

std::string	m_provided_configuration

const std::string	m_local_defaultValue = {"/robotDescription_nwc_yarp/rpc"}

const std::string	m_remote_defaultValue = {"/robotDescription_nws_yarp/rpc"}

std::string	m_local = {"/robotDescription_nwc_yarp/rpc"}

std::string	m_remote = {"/robotDescription_nws_yarp/rpc"}

Detailed Description

robotDescription_nwc_yarp: This client device is used to connect to a robotDescription_nws_yarp and ask info about the currently opened devices.

Parameters required by this device are shown in class: RobotDescription_nwc_yarp_ParamsParser

Definition at line 33 of file RobotDescription_nwc_yarp.h.

Member Function Documentation

◆ close()

bool RobotDescription_nwc_yarp::close ( )

overridevirtual

Close the DeviceDriver.

Returns: true/false on success/failure.

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 55 of file RobotDescription_nwc_yarp.cpp.

◆ getAllDevices()

yarp::dev::ReturnValue RobotDescription_nwc_yarp::getAllDevices ( std::vector< yarp::dev::DeviceDescription > & dev_list )

overridevirtual

Ask the complete list of all yarp device drivers registered by a robot description server.

Implements yarp::dev::IRobotDescription.

Definition at line 97 of file RobotDescription_nwc_yarp.cpp.

◆ getAllDevicesByType()

yarp::dev::ReturnValue RobotDescription_nwc_yarp::getAllDevicesByType	(	const std::string &	type,
		std::vector< yarp::dev::DeviceDescription > &	dev_list
	)

overridevirtual

Ask a list of all registered yarp device drivers whose type corresponds to the given param.

Implements yarp::dev::IRobotDescription.

Definition at line 62 of file RobotDescription_nwc_yarp.cpp.

◆ open()

bool RobotDescription_nwc_yarp::open ( yarp::os::Searchable & config )

overridevirtual

Open the DeviceDriver.

Parameters

config is a list of parameters for the device. Which parameters are effective for your device can vary. See device invocation examples. If there is no example for your device, you can run the "yarpdev" program with the verbose flag set to probe what parameters the device is checking. If that fails too, you'll need to read the source code (please nag one of the yarp developers to add documentation for your device).

Returns: true/false upon success/failure

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 23 of file RobotDescription_nwc_yarp.cpp.

◆ registerDevice()

yarp::dev::ReturnValue RobotDescription_nwc_yarp::registerDevice ( const yarp::dev::DeviceDescription & dev )

overridevirtual

Register a new running yarp device into a robot description server.

Implements yarp::dev::IRobotDescription.

Definition at line 85 of file RobotDescription_nwc_yarp.cpp.

◆ unregisterAll()

yarp::dev::ReturnValue RobotDescription_nwc_yarp::unregisterAll ( )

overridevirtual

Unregister all the devices.

Implements yarp::dev::IRobotDescription.

Definition at line 109 of file RobotDescription_nwc_yarp.cpp.

◆ unregisterDevice()

yarp::dev::ReturnValue RobotDescription_nwc_yarp::unregisterDevice ( const std::string & device_name )

overridevirtual

Unregister a running yarp device from a robot description server.

Implements yarp::dev::IRobotDescription.

Definition at line 74 of file RobotDescription_nwc_yarp.cpp.

Member Data Documentation

◆ m_mutex

std::mutex RobotDescription_nwc_yarp::m_mutex

protected

Definition at line 39 of file RobotDescription_nwc_yarp.h.

◆ m_RPC

IRobotDescriptionMsgs RobotDescription_nwc_yarp::m_RPC

protected

Definition at line 41 of file RobotDescription_nwc_yarp.h.

◆ m_rpc_port

yarp::os::Port RobotDescription_nwc_yarp::m_rpc_port

protected

Definition at line 40 of file RobotDescription_nwc_yarp.h.

The documentation for this class was generated from the following files:

src/devices/networkWrappers/robotDescription_nwc_yarp/RobotDescription_nwc_yarp.h
src/devices/networkWrappers/robotDescription_nwc_yarp/RobotDescription_nwc_yarp.cpp
