RobotDescription_nws_yarp: This device is a storage which contains a list of the currently opened device drivers. More...

#include <robotDescriptionStorage/RobotDescriptionStorage.h>

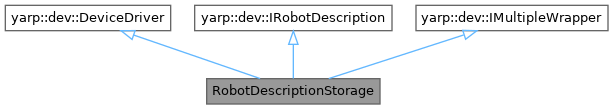

Inheritance diagram for RobotDescriptionStorage:

Public Member Functions
	RobotDescriptionStorage ()=default

virtual	~RobotDescriptionStorage ()=default

bool	open (yarp::os::Searchable &params) override
	Open the DeviceDriver.

bool	close () override
	Close the DeviceDriver.

bool	detachAll () override
	Detach the object (you must have first called attach).

bool	attachAll (const yarp::dev::PolyDriverList &l) override
	Attach to a list of objects.

yarp::dev::ReturnValue	getAllDevices (std::vector< yarp::dev::DeviceDescription > &dev_list) override
	Ask the complete list of all yarp device drivers registered by a robot description server.

yarp::dev::ReturnValue	getAllDevicesByType (const std::string &type, std::vector< yarp::dev::DeviceDescription > &dev_list) override
	Ask a list of all registered yarp device drivers whose type corresponds to the given param.

yarp::dev::ReturnValue	registerDevice (const yarp::dev::DeviceDescription &dev) override
	Register a new running yarp device into a robot description server.

yarp::dev::ReturnValue	unregisterDevice (const std::string &device_name) override
	Unregister a running yarp device from a robot description server.

yarp::dev::ReturnValue	unregisterAll () override
	Unregister all the devices.

Public Member Functions inherited from yarp::dev::DeviceDriver
	DeviceDriver ()

	DeviceDriver (const DeviceDriver &other)=delete

	DeviceDriver (DeviceDriver &&other) noexcept=delete

DeviceDriver &	operator= (const DeviceDriver &other)=delete

DeviceDriver &	operator= (DeviceDriver &&other) noexcept=delete

virtual	~DeviceDriver ()

virtual std::string	id () const
	Return the id assigned to the PolyDriver.

virtual void	setId (const std::string &id)
	Set the id for this device.

template<class T >
bool	view (T *&x)
	Get an interface to the device driver.

virtual DeviceDriver *	getImplementation ()
	Some drivers are bureaucrats, pointing at others.

Public Member Functions inherited from yarp::dev::IRobotDescription
virtual	~IRobotDescription ()
	Destructor.

Public Member Functions inherited from yarp::dev::IMultipleWrapper
virtual	~IMultipleWrapper ()
	Destructor.

Detailed Description

RobotDescription_nws_yarp: This device is a storage which contains a list of the currently opened device drivers.

yarprobotinterface might adds/removes devices to the storage using attachAll()/detachAll() methods.

This device does not accepts parameters

Definition at line 26 of file RobotDescriptionStorage.h.

Constructor & Destructor Documentation

◆ RobotDescriptionStorage()

RobotDescriptionStorage::RobotDescriptionStorage ( )

default

◆ ~RobotDescriptionStorage()

virtual RobotDescriptionStorage::~RobotDescriptionStorage ( )

virtualdefault

Member Function Documentation

◆ attachAll()

bool RobotDescriptionStorage::attachAll ( const yarp::dev::PolyDriverList & drivers )

overridevirtual

Attach to a list of objects.

Parameters

drivers the polydriver list that you want to attach to.

Returns: true/false on success failure.

Implements yarp::dev::IMultipleWrapper.

Definition at line 89 of file RobotDescriptionStorage.cpp.

◆ close()

bool RobotDescriptionStorage::close ( )

inlineoverridevirtual

Close the DeviceDriver.

Returns: true/false on success/failure.

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 42 of file RobotDescriptionStorage.h.

◆ detachAll()

bool RobotDescriptionStorage::detachAll ( )

overridevirtual

Detach the object (you must have first called attach).

Returns: true/false on success failure.

Implements yarp::dev::IMultipleWrapper.

Definition at line 142 of file RobotDescriptionStorage.cpp.

◆ getAllDevices()

yarp::dev::ReturnValue RobotDescriptionStorage::getAllDevices ( std::vector< yarp::dev::DeviceDescription > & dev_list )

overridevirtual

Ask the complete list of all yarp device drivers registered by a robot description server.

Implements yarp::dev::IRobotDescription.

Definition at line 19 of file RobotDescriptionStorage.cpp.

◆ getAllDevicesByType()

yarp::dev::ReturnValue RobotDescriptionStorage::getAllDevicesByType	(	const std::string &	type,
		std::vector< yarp::dev::DeviceDescription > &	dev_list
	)

overridevirtual

Ask a list of all registered yarp device drivers whose type corresponds to the given param.

Implements yarp::dev::IRobotDescription.

Definition at line 25 of file RobotDescriptionStorage.cpp.

◆ open()

bool RobotDescriptionStorage::open ( yarp::os::Searchable & config )

inlineoverridevirtual

Open the DeviceDriver.

Parameters

config is a list of parameters for the device. Which parameters are effective for your device can vary. See device invocation examples. If there is no example for your device, you can run the "yarpdev" program with the verbose flag set to probe what parameters the device is checking. If that fails too, you'll need to read the source code (please nag one of the yarp developers to add documentation for your device).
