rgbdSensor_nws_ros: A Network grabber for kinect-like devices. This device will produce two streams of data through different ports, one for the color frame and the other one for depth image following Framegrabber and IDepthSensor interfaces specification respectively. See they documentation for more details about each interface. More...

#include </home/runner/work/yarp-documentation/yarp-documentation/yarp/opt-modules/yarp-devices-ros/src/devices/RGBDSensor_nws_ros/RgbdSensor_nws_ros.h>

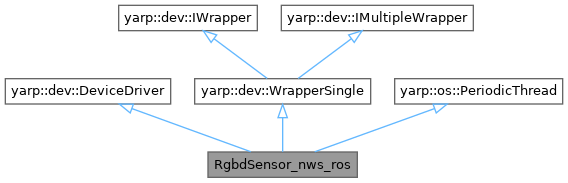

Inheritance diagram for RgbdSensor_nws_ros:

Public Member Functions
	RgbdSensor_nws_ros ()

	RgbdSensor_nws_ros (const RgbdSensor_nws_ros &)=delete

	RgbdSensor_nws_ros (RgbdSensor_nws_ros &&)=delete

RgbdSensor_nws_ros &	operator= (const RgbdSensor_nws_ros &)=delete

RgbdSensor_nws_ros &	operator= (RgbdSensor_nws_ros &&)=delete

	~RgbdSensor_nws_ros () override

bool	open (yarp::os::Searchable &params) override
	Device driver interface.

bool	close () override
	Close the DeviceDriver.

bool	attach (yarp::dev::PolyDriver *poly) override
	Specify which sensor this thread has to read from.

bool	detach () override
	WrapperSingle interface.

bool	threadInit () override
	Initialization method.

void	threadRelease () override
	Release method.

void	run () override
	Loop function.

Public Member Functions inherited from yarp::dev::DeviceDriver
	DeviceDriver ()

	DeviceDriver (const DeviceDriver &other)=delete

	DeviceDriver (DeviceDriver &&other) noexcept=delete

DeviceDriver &	operator= (const DeviceDriver &other)=delete

DeviceDriver &	operator= (DeviceDriver &&other) noexcept=delete

	~DeviceDriver () override

virtual std::string	id () const
	Return the id assigned to the PolyDriver.

virtual void	setId (const std::string &id)
	Set the id for this device.

template<class T >
bool	view (T *&x)
	Get an interface to the device driver.

virtual DeviceDriver *	getImplementation ()
	Some drivers are bureaucrats, pointing at others.

Public Member Functions inherited from yarp::os::IConfig
virtual	~IConfig ()
	Destructor.

virtual bool	configure (Searchable &config)
	Change online parameters.

Public Member Functions inherited from yarp::dev::WrapperSingle
	~WrapperSingle () override
	Destructor.

bool	attachAll (const yarp::dev::PolyDriverList &drivers) final
	Attach to a list of objects.

bool	detachAll () final
	Detach the object (you must have first called attach).

Public Member Functions inherited from yarp::dev::IWrapper
virtual	~IWrapper ()
	Destructor.

Public Member Functions inherited from yarp::dev::IMultipleWrapper
virtual	~IMultipleWrapper ()
	Destructor.

Public Member Functions inherited from yarp::os::PeriodicThread
	PeriodicThread (double period, ShouldUseSystemClock useSystemClock=ShouldUseSystemClock::No, PeriodicThreadClock clockAccuracy=PeriodicThreadClock::Relative)
	Constructor.

	PeriodicThread (double period, PeriodicThreadClock clockAccuracy)
	Constructor.

virtual	~PeriodicThread ()

bool	start ()
	Call this to start the thread.

void	step ()
	Call this to "step" the thread rather than starting it.

void	stop ()
	Call this to stop the thread, this call blocks until the thread is terminated (and releaseThread() called).

void	askToStop ()
	Stop the thread.

bool	isRunning () const
	Returns true when the thread is started, false otherwise.

bool	isSuspended () const
	Returns true when the thread is suspended, false otherwise.

bool	setPeriod (double period)
	Set the (new) period of the thread.

double	getPeriod () const
	Return the current period of the thread.

void	suspend ()
	Suspend the thread, the thread keeps running by doLoop is never executed.

void	resume ()
	Resume the thread if previously suspended.

void	resetStat ()
	Reset thread statistics.

double	getEstimatedPeriod () const
	Return estimated period since last reset.

void	getEstimatedPeriod (double &av, double &std) const
	Return estimated period since last reset.

unsigned int	getIterations () const
	Return the number of iterations performed since last reset.

double	getEstimatedUsed () const
	Return the estimated duration of the run() function since last reset.

void	getEstimatedUsed (double &av, double &std) const
	Return estimated duration of the run() function since last reset.

int	setPriority (int priority, int policy=-1)
	Set the priority and scheduling policy of the thread, if the OS supports that.

int	getPriority () const
	Query the current priority of the thread, if the OS supports that.

int	getPolicy () const
	Query the current scheduling policy of the thread, if the OS supports that.

Additional Inherited Members
Protected Member Functions inherited from yarp::os::PeriodicThread
virtual void	beforeStart ()
	Called just before a new thread starts.

virtual void	afterStart (bool success)
	Called just after a new thread starts (or fails to start), this is executed by the same thread that calls start().

Detailed Description

rgbdSensor_nws_ros: A Network grabber for kinect-like devices. This device will produce two streams of data through different ports, one for the color frame and the other one for depth image following Framegrabber and IDepthSensor interfaces specification respectively. See they documentation for more details about each interface.

Description of input parameters

This device is paired with its client called RgbdSensor_nws_ros to receive the data streams.

Parameters required by this device are:

Parameter name	SubParameter	Type	Units	Default Value	Required	Description	Notes
period	-	double	s	0.03	No	refresh period of the broadcasted values in s	default 0.03s
forceInfoSync	-	string	bool	-	no	set 'true' to force the timestamp on the camera_info message to match the image one	-
color_topic_name	-	string	-	-	Yes	the color topic	recommended value /camera/color/image_rect_color
depth_topic_name	-	string	-	-	Yes	the depth topic	recommended value /camera/depth/image_rect
color_frame_id	-	string	-	-	Yes	set the name of the reference frame for the color camera
depth_frame_id	-	string	-	-	Yes	set the name of the reference frame for the depth camera
node_name	-	string	-	-	Yes	set the name for ROS node	must start with a leading '/'

ROS message type used is sensor_msgs/Image.msg ( http://docs.ros.org/api/sensor_msgs/html/msg/Image.html) Some example of configuration files:

Example of configuration file using .ini format.

device rgbdSensor_nws_ros
subdevice <RGBDsensor>
period 0.03
color_topic_name /<robotName>/camera/color/image_raw
depth_topic_name /<robotName>/camera/depth/image_raw
color_frame_id rgbd_color_frame
depth_frame_id rgbd_depth_frame
node_name rgbdsensor

Definition at line 87 of file RgbdSensor_nws_ros.h.

Constructor & Destructor Documentation

◆ RgbdSensor_nws_ros() [1/3]

RgbdSensor_nws_ros::RgbdSensor_nws_ros ( )

Definition at line 27 of file RgbdSensor_nws_ros.cpp.

◆ RgbdSensor_nws_ros() [2/3]

RgbdSensor_nws_ros::RgbdSensor_nws_ros ( const RgbdSensor_nws_ros & )

delete

◆ RgbdSensor_nws_ros() [3/3]

RgbdSensor_nws_ros::RgbdSensor_nws_ros ( RgbdSensor_nws_ros && )

delete

◆ ~RgbdSensor_nws_ros()

RgbdSensor_nws_ros::~RgbdSensor_nws_ros ( )

override

Definition at line 39 of file RgbdSensor_nws_ros.cpp.

Member Function Documentation

◆ attach()

bool RgbdSensor_nws_ros::attach ( yarp::dev::PolyDriver * poly )

overridevirtual

Specify which sensor this thread has to read from.

Implements yarp::dev::IWrapper.

Definition at line 191 of file RgbdSensor_nws_ros.cpp.

◆ close()

bool RgbdSensor_nws_ros::close ( )

overridevirtual

Close the DeviceDriver.

Returns: true/false on success/failure.

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 80 of file RgbdSensor_nws_ros.cpp.

◆ detach()

bool RgbdSensor_nws_ros::detach ( )

overridevirtual

WrapperSingle interface.

Implements yarp::dev::IWrapper.

Definition at line 181 of file RgbdSensor_nws_ros.cpp.

◆ open()

bool RgbdSensor_nws_ros::open ( yarp::os::Searchable & params )

overridevirtual

Device driver interface.

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 48 of file RgbdSensor_nws_ros.cpp.

◆ operator=() [1/2]

RgbdSensor_nws_ros & RgbdSensor_nws_ros::operator= ( const RgbdSensor_nws_ros & )

delete

◆ operator=() [2/2]

RgbdSensor_nws_ros & RgbdSensor_nws_ros::operator= ( RgbdSensor_nws_ros && )

delete

◆ run()

void RgbdSensor_nws_ros::run ( )

overridevirtual

Loop function.

This is the thread itself. The thread calls the run() function every <period> ms. At the end of each run, the thread will sleep the amounth of time required, taking into account the time spent inside the loop function. Example: requested period is 10ms, the run() function take 3ms to be executed, the thread will sleep for 7ms.

Note: after each run is completed, the thread will call a yield() in order to facilitate other threads to run.

Implements yarp::os::PeriodicThread.

Definition at line 417 of file RgbdSensor_nws_ros.cpp.

◆ threadInit()

bool RgbdSensor_nws_ros::threadInit ( )

overridevirtual

Initialization method.

The thread executes this function when it starts and before "run". This is a good place to perform initialization tasks that need to be done by the thread itself (device drivers initialization, memory allocation etc). If the function returns false the thread quits and never calls "run". The return value of threadInit() is notified to the class and passed as a parameter to afterStart(). Note that afterStart() is called by the same thread that is executing the "start" method.

Reimplemented from yarp::os::PeriodicThread.

Definition at line 216 of file RgbdSensor_nws_ros.cpp.

◆ threadRelease()

void RgbdSensor_nws_ros::threadRelease ( )

overridevirtual

Release method.

The thread executes this function once when it exits, after the last "run". This is a good place to release resources that were initialized in threadInit() (release memory, and device driver resources).

Reimplemented from yarp::os::PeriodicThread.

Definition at line 222 of file RgbdSensor_nws_ros.cpp.

The documentation for this class was generated from the following files:

opt-modules/yarp-devices-ros/src/devices/RGBDSensor_nws_ros/RgbdSensor_nws_ros.h
opt-modules/yarp-devices-ros/src/devices/RGBDSensor_nws_ros/RgbdSensor_nws_ros.cpp
