MobileBaseVelocityControl_nws_ros2 Class Reference

MobileBaseVelocityControl_nws_ros2: A device which allows a client application to control the velocity of a mobile base from ros2. The device opens a topic of type ::geometry_msgs::msg::Twist to receive user commands More...

#include </home/runner/work/yarp-documentation/yarp-documentation/yarp/opt-modules/yarp-devices-ros2/src/devices/mobileBaseVelocityControl_nws_ros2/MobileBaseVelocityControl_nws_ros2.h>

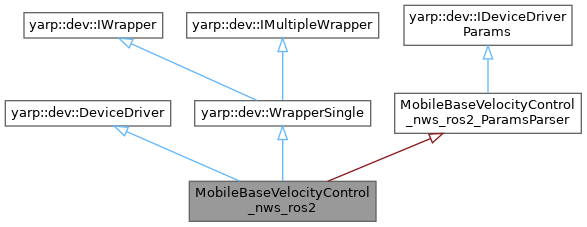

Inheritance diagram for MobileBaseVelocityControl_nws_ros2:

Public Member Functions
	MobileBaseVelocityControl_nws_ros2 ()=default
bool	open (yarp::os::Searchable &config) override
	Open the DeviceDriver.
bool	close () override
	Close the DeviceDriver.
bool	detach () override
	Detach the object (you must have first called attach).
bool	attach (yarp::dev::PolyDriver *driver) override
	Attach to another object.
Public Member Functions inherited from yarp::dev::DeviceDriver
	DeviceDriver ()
	DeviceDriver (const DeviceDriver &other)=delete
	DeviceDriver (DeviceDriver &&other) noexcept=delete
DeviceDriver &	operator= (const DeviceDriver &other)=delete
DeviceDriver &	operator= (DeviceDriver &&other) noexcept=delete
	~DeviceDriver () override
virtual std::string	id () const
	Return the id assigned to the PolyDriver.
virtual void	setId (const std::string &id)
	Set the id for this device.
template<class T >
bool	view (T *&x)
	Get an interface to the device driver.
virtual DeviceDriver *	getImplementation ()
	Some drivers are bureaucrats, pointing at others.
Public Member Functions inherited from yarp::os::IConfig
virtual	~IConfig ()
	Destructor.
virtual bool	configure (Searchable &config)
	Change online parameters.
Public Member Functions inherited from yarp::dev::WrapperSingle
	~WrapperSingle () override
	Destructor.
bool	attachAll (const yarp::dev::PolyDriverList &drivers) final
	Attach to a list of objects.
bool	detachAll () final
	Detach the object (you must have first called attach).
Public Member Functions inherited from yarp::dev::IWrapper
virtual	~IWrapper ()
	Destructor.
Public Member Functions inherited from yarp::dev::IMultipleWrapper
virtual	~IMultipleWrapper ()
	Destructor.

Detailed Description

MobileBaseVelocityControl_nws_ros2: A device which allows a client application to control the velocity of a mobile base from ros2. The device opens a topic of type ::geometry_msgs::msg::Twist to receive user commands

MobileBaseVelocityControl_nws_ros2

Parameters required by this device are:

Parameter name	SubParameter	Type	Units	Default Value	Required	Description	Notes
node_name	-	string	-	-	Yes	Full name of the opened ros2 node
topic_name	-	string	-	-	Yes	Full name of the opened ros2 topic

Definition at line 49 of file MobileBaseVelocityControl_nws_ros2.h.

Constructor & Destructor Documentation

MobileBaseVelocityControl_nws_ros2()

MobileBaseVelocityControl_nws_ros2::MobileBaseVelocityControl_nws_ros2 ( )

default

Member Function Documentation

attach()

bool MobileBaseVelocityControl_nws_ros2::attach ( yarp::dev::PolyDriver *  driver )

overridevirtual

Attach to another object.

Parameters

driver

the polydriver that you want to attach to.

Returns

true/false on success failure.

Implements yarp::dev::IWrapper.

Definition at line 79 of file MobileBaseVelocityControl_nws_ros2.cpp.

close()

bool MobileBaseVelocityControl_nws_ros2::close ( )

overridevirtual

Close the DeviceDriver.

Returns

true/false on success/failure.

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 98 of file MobileBaseVelocityControl_nws_ros2.cpp.

detach()

bool MobileBaseVelocityControl_nws_ros2::detach ( )

overridevirtual

Detach the object (you must have first called attach).

Returns

true/false on success failure.

Implements yarp::dev::IWrapper.

Definition at line 73 of file MobileBaseVelocityControl_nws_ros2.cpp.

open()

bool MobileBaseVelocityControl_nws_ros2::open ( yarp::os::Searchable &  config )

overridevirtual

Open the DeviceDriver.

Parameters

config

is a list of parameters for the device. Which parameters are effective for your device can vary. See device invocation examples. If there is no example for your device, you can run the "yarpdev" program with the verbose flag set to probe what parameters the device is checking. If that fails too, you'll need to read the source code (please nag one of the yarp developers to add documentation for your device).

Returns

true/false upon success/failure

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 30 of file MobileBaseVelocityControl_nws_ros2.cpp.

---

The documentation for this class was generated from the following files:

• opt-modules/yarp-devices-ros2/src/devices/mobileBaseVelocityControl_nws_ros2/MobileBaseVelocityControl_nws_ros2.h
• opt-modules/yarp-devices-ros2/src/devices/mobileBaseVelocityControl_nws_ros2/MobileBaseVelocityControl_nws_ros2.cpp
