controlBoard_nws_yarp: A controlBoard network wrapper server for YARP. More...

#include <networkWrappers/controlBoard_nws_yarp/ControlBoard_nws_yarp.h>

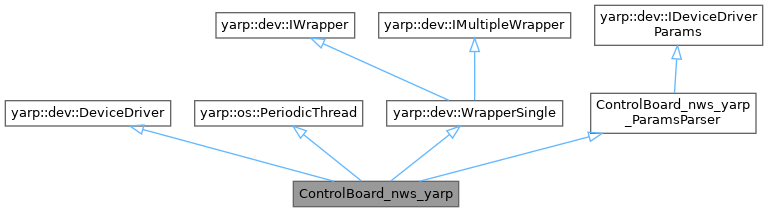

Inheritance diagram for ControlBoard_nws_yarp:

Public Member Functions
	ControlBoard_nws_yarp ()

	ControlBoard_nws_yarp (const ControlBoard_nws_yarp &)=delete

	ControlBoard_nws_yarp (ControlBoard_nws_yarp &&)=delete

ControlBoard_nws_yarp &	operator= (const ControlBoard_nws_yarp &)=delete

ControlBoard_nws_yarp &	operator= (ControlBoard_nws_yarp &&)=delete

	~ControlBoard_nws_yarp () override=default

bool	close () override
	Close the DeviceDriver.

bool	open (yarp::os::Searchable &prop) override
	Open the DeviceDriver.

bool	attach (yarp::dev::PolyDriver *poly) override
	Attach to another object.

bool	detach () override
	Detach the object (you must have first called attach).

void	run () override
	Loop function.

Public Member Functions inherited from yarp::dev::DeviceDriver
	DeviceDriver ()

	DeviceDriver (const DeviceDriver &other)=delete

	DeviceDriver (DeviceDriver &&other) noexcept=delete

DeviceDriver &	operator= (const DeviceDriver &other)=delete

DeviceDriver &	operator= (DeviceDriver &&other) noexcept=delete

virtual	~DeviceDriver ()

virtual std::string	id () const
	Return the id assigned to the PolyDriver.

virtual void	setId (const std::string &id)
	Set the id for this device.

template<class T >
bool	view (T *&x)
	Get an interface to the device driver.

virtual DeviceDriver *	getImplementation ()
	Some drivers are bureaucrats, pointing at others.

Public Member Functions inherited from yarp::os::PeriodicThread
	PeriodicThread (double period, ShouldUseSystemClock useSystemClock=ShouldUseSystemClock::No, PeriodicThreadClock clockAccuracy=PeriodicThreadClock::Relative)
	Constructor.

	PeriodicThread (double period, PeriodicThreadClock clockAccuracy)
	Constructor.

virtual	~PeriodicThread ()

bool	start ()
	Call this to start the thread.

void	step ()
	Call this to "step" the thread rather than starting it.

void	stop ()
	Call this to stop the thread, this call blocks until the thread is terminated (and releaseThread() called).

void	askToStop ()
	Stop the thread.

bool	isRunning () const
	Returns true when the thread is started, false otherwise.

bool	isSuspended () const
	Returns true when the thread is suspended, false otherwise.

bool	setPeriod (double period)
	Set the (new) period of the thread.

double	getPeriod () const
	Return the current period of the thread.

void	suspend ()
	Suspend the thread, the thread keeps running by doLoop is never executed.

void	resume ()
	Resume the thread if previously suspended.

void	resetStat ()
	Reset thread statistics.

double	getEstimatedPeriod () const
	Return estimated period since last reset.

void	getEstimatedPeriod (double &av, double &std) const
	Return estimated period since last reset.

unsigned int	getIterations () const
	Return the number of iterations performed since last reset.

double	getEstimatedUsed () const
	Return the estimated duration of the run() function since last reset.

void	getEstimatedUsed (double &av, double &std) const
	Return estimated duration of the run() function since last reset.

int	setPriority (int priority, int policy=-1)
	Set the priority and scheduling policy of the thread, if the OS supports that.

int	getPriority () const
	Query the current priority of the thread, if the OS supports that.

int	getPolicy () const
	Query the current scheduling policy of the thread, if the OS supports that.

Public Member Functions inherited from yarp::dev::WrapperSingle
	~WrapperSingle () override
	Destructor.

bool	attachAll (const yarp::dev::PolyDriverList &drivers) final
	Attach to a list of objects.

bool	detachAll () final
	Detach the object (you must have first called attach).

Public Member Functions inherited from yarp::dev::IWrapper
virtual	~IWrapper ()
	Destructor.

Public Member Functions inherited from yarp::dev::IMultipleWrapper
virtual	~IMultipleWrapper ()
	Destructor.

Public Member Functions inherited from ControlBoard_nws_yarp_ParamsParser
	ControlBoard_nws_yarp_ParamsParser ()

	~ControlBoard_nws_yarp_ParamsParser () override=default

bool	parseParams (const yarp::os::Searchable &config) override
	Parse the DeviceDriver parameters.

std::string	getDeviceClassName () const override
	Get the name of the DeviceDriver class.

std::string	getDeviceName () const override
	Get the name of the device (i.e.

std::string	getDocumentationOfDeviceParams () const override
	Get the documentation of the DeviceDriver's parameters.

std::vector< std::string >	getListOfParams () const override
	Return a list of all params used by the device.

bool	getParamValue (const std::string &paramName, std::string &paramValue) const override
	Return the value (represented as a string) of the requested parameter.

std::string	getConfiguration () const override
	Return the configuration of the device.

Public Member Functions inherited from yarp::dev::IDeviceDriverParams
virtual	~IDeviceDriverParams ()

Additional Inherited Members
Public Attributes inherited from ControlBoard_nws_yarp_ParamsParser
const std::string	m_device_classname = {"ControlBoard_nws_yarp"}

const std::string	m_device_name = {"controlBoard_nws_yarp"}

bool	m_parser_is_strict = false

const parser_version_type	m_parser_version = {}

std::string	m_provided_configuration

const std::string	m_period_defaultValue = {"0.02"}

const std::string	m_name_defaultValue = {"/robot/part"}

double	m_period = {0.02}

std::string	m_name = {"/robot/part"}

Protected Member Functions inherited from yarp::os::PeriodicThread
virtual bool	threadInit ()
	Initialization method.

virtual void	threadRelease ()
	Release method.

virtual void	beforeStart ()
	Called just before a new thread starts.

virtual void	afterStart (bool success)
	Called just after a new thread starts (or fails to start), this is executed by the same thread that calls start().

Detailed Description

controlBoard_nws_yarp: A controlBoard network wrapper server for YARP.

Description of input parameters

Parameters required by this device are shown in class: ControlBoard_nws_yarp_ParamsParser

Parameters required by this device are:

Parameter name	SubParameter	Type	Units	Default Value	Required	Description	Notes
name	-	string	-	-	Yes	full name of the port opened by the device, like /robotName/part/	MUST start with a '/' character
period	-	double	s	0.02	No	refresh period of the broadcasted values in s	optional, default 0.02s period

Definition at line 63 of file ControlBoard_nws_yarp.h.

Constructor & Destructor Documentation

◆ ControlBoard_nws_yarp() [1/3]

ControlBoard_nws_yarp::ControlBoard_nws_yarp ( )

Definition at line 26 of file ControlBoard_nws_yarp.cpp.

◆ ControlBoard_nws_yarp() [2/3]

ControlBoard_nws_yarp::ControlBoard_nws_yarp ( const ControlBoard_nws_yarp & )

delete

◆ ControlBoard_nws_yarp() [3/3]

ControlBoard_nws_yarp::ControlBoard_nws_yarp ( ControlBoard_nws_yarp && )

delete

◆ ~ControlBoard_nws_yarp()

ControlBoard_nws_yarp::~ControlBoard_nws_yarp ( )

overridedefault

Member Function Documentation

◆ attach()

bool ControlBoard_nws_yarp::attach ( yarp::dev::PolyDriver * driver )

overridevirtual

Attach to another object.

Parameters

driver the polydriver that you want to attach to.

Returns: true/false on success failure.

Implements yarp::dev::IWrapper.

Definition at line 318 of file ControlBoard_nws_yarp.cpp.

◆ close()

bool ControlBoard_nws_yarp::close ( )

overridevirtual

Close the DeviceDriver.

Returns: true/false on success/failure.

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 47 of file ControlBoard_nws_yarp.cpp.

◆ detach()

bool ControlBoard_nws_yarp::detach ( )

overridevirtual

Detach the object (you must have first called attach).

Returns: true/false on success failure.

Implements yarp::dev::IWrapper.

Definition at line 338 of file ControlBoard_nws_yarp.cpp.

◆ open()

bool ControlBoard_nws_yarp::open ( yarp::os::Searchable & config )

overridevirtual

Open the DeviceDriver.

Parameters

config is a list of parameters for the device. Which parameters are effective for your device can vary. See device invocation examples. If there is no example for your device, you can run the "yarpdev" program with the verbose flag set to probe what parameters the device is checking. If that fails too, you'll need to read the source code (please nag one of the yarp developers to add documentation for your device).

Returns: true/false upon success/failure

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 60 of file ControlBoard_nws_yarp.cpp.

◆ operator=() [1/2]

ControlBoard_nws_yarp & ControlBoard_nws_yarp::operator= ( const ControlBoard_nws_yarp & )

delete

◆ operator=() [2/2]

ControlBoard_nws_yarp & ControlBoard_nws_yarp::operator= ( ControlBoard_nws_yarp && )

delete

◆ run()

void ControlBoard_nws_yarp::run ( )

overridevirtual

Loop function.

This is the thread itself. The thread calls the run() function every <period> ms. At the end of each run, the thread will sleep the amounth of time required, taking into account the time spent inside the loop function. Example: requested period is 10ms, the run() function take 3ms to be executed, the thread will sleep for 7ms.

Note: after each run is completed, the thread will call a yield() in order to facilitate other threads to run.

Implements yarp::os::PeriodicThread.

Definition at line 350 of file ControlBoard_nws_yarp.cpp.

The documentation for this class was generated from the following files:

src/devices/networkWrappers/controlBoard_nws_yarp/ControlBoard_nws_yarp.h
src/devices/networkWrappers/controlBoard_nws_yarp/ControlBoard_nws_yarp.cpp
