AudioRecorder_nws_yarp Class Reference

AudioRecorder_nws_yarp: A Wrapper which streams audio over the network, after grabbing it from a device. More...

#include <audioRecorder_nws_yarp/AudioRecorder_nws_yarp.h>

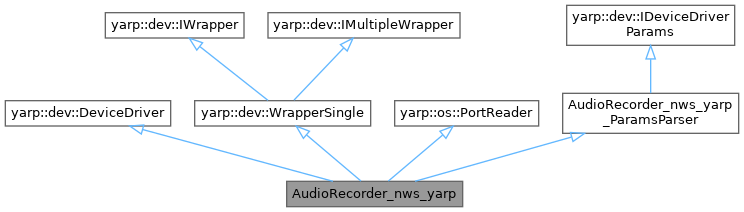

Inheritance diagram for AudioRecorder_nws_yarp:

Public Member Functions
	AudioRecorder_nws_yarp ()
	Constructor.
	AudioRecorder_nws_yarp (const AudioRecorder_nws_yarp &)=delete
	AudioRecorder_nws_yarp (AudioRecorder_nws_yarp &&)=delete
AudioRecorder_nws_yarp &	operator= (const AudioRecorder_nws_yarp &)=delete
AudioRecorder_nws_yarp &	operator= (AudioRecorder_nws_yarp &&)=delete
	~AudioRecorder_nws_yarp () override
bool	open (yarp::os::Searchable &config) override
	Initialize the object.
bool	close () override
	Shut the object down.
bool	attach (yarp::dev::PolyDriver *driver) override
	Attach to another object.
bool	detach () override
	Detach the object (you must have first called attach).
bool	read (yarp::os::ConnectionReader &connection) override
	Read this object from a network connection.
Public Member Functions inherited from yarp::dev::DeviceDriver
	DeviceDriver ()
	DeviceDriver (const DeviceDriver &other)=delete
	DeviceDriver (DeviceDriver &&other) noexcept=delete
DeviceDriver &	operator= (const DeviceDriver &other)=delete
DeviceDriver &	operator= (DeviceDriver &&other) noexcept=delete
	~DeviceDriver () override
bool	open (yarp::os::Searchable &config) override
	Open the DeviceDriver.
bool	close () override
	Close the DeviceDriver.
virtual std::string	id () const
	Return the id assigned to the PolyDriver.
virtual void	setId (const std::string &id)
	Set the id for this device.
template<class T >
bool	view (T *&x)
	Get an interface to the device driver.
virtual DeviceDriver *	getImplementation ()
	Some drivers are bureaucrats, pointing at others.
Public Member Functions inherited from yarp::os::IConfig
virtual	~IConfig ()
	Destructor.
virtual bool	configure (Searchable &config)
	Change online parameters.
Public Member Functions inherited from yarp::dev::WrapperSingle
	~WrapperSingle () override
	Destructor.
bool	attachAll (const yarp::dev::PolyDriverList &drivers) final
	Attach to a list of objects.
bool	detachAll () final
	Detach the object (you must have first called attach).
Public Member Functions inherited from yarp::dev::IWrapper
virtual	~IWrapper ()
	Destructor.
Public Member Functions inherited from yarp::dev::IMultipleWrapper
virtual	~IMultipleWrapper ()
	Destructor.
Public Member Functions inherited from yarp::os::PortReader
virtual	~PortReader ()
	Destructor.
virtual Type	getReadType () const

Friends
class	AudioRecorderStatusThread
class	AudioRecorderDataThread

Detailed Description

AudioRecorder_nws_yarp: A Wrapper which streams audio over the network, after grabbing it from a device.

Description of input parameters

Parameters required by this device are:

Parameter name	SubParameter	Type	Units	Default Value	Required	Description	Notes
name	-	string	-	/audioRecorderWrapper	No	full name of the port opened by the device	MUST start with a '/' character, xxx/audio:o and xxx/rpc suffixes are appended
period	-	int	ms	20	No	period of the internal thread, in ms	default 20ms
debug	-	bool	-	-	No	developers use only
min_samples_over_network	-	int	samples	11250	No	sends the network packet ifs n samples are collected AND the timeout is expired	the algorithm is implemented in AudioRecorderDeviceBase::getSound() method
max_samples_over_network	-	int	samples	11250	No	sends the network packet as soon as n samples have been collected	the algorithm is implemented in AudioRecorderDeviceBase::getSound() method
max_samples_timeout	-	float	s	1.0	No	timeout for sample collection	the algorithm is implemented in AudioRecorderDeviceBase::getSound() method
start	-	bool	-	false	No	automatically activates the recording when the device is started	if false, the recording is enabled via rpc port
send_sound_on_stop	-	bool	-	true	No	send the sound when the stop rpc is called, even if it does not met network size parameters	it will not send empty sounds

See Audio in YARP for additional documentation on YARP audio.

Definition at line 50 of file AudioRecorder_nws_yarp.h.

Constructor & Destructor Documentation

AudioRecorder_nws_yarp() [1/3]

AudioRecorder_nws_yarp::AudioRecorder_nws_yarp

(

)

Constructor.

Definition at line 23 of file AudioRecorder_nws_yarp.cpp.

AudioRecorder_nws_yarp() [2/3]

AudioRecorder_nws_yarp::AudioRecorder_nws_yarp ( const AudioRecorder_nws_yarp &  )

delete

AudioRecorder_nws_yarp() [3/3]

AudioRecorder_nws_yarp::AudioRecorder_nws_yarp ( AudioRecorder_nws_yarp &&  )

delete

~AudioRecorder_nws_yarp()

AudioRecorder_nws_yarp::~AudioRecorder_nws_yarp ( )

override

Definition at line 32 of file AudioRecorder_nws_yarp.cpp.

Member Function Documentation

attach()

bool AudioRecorder_nws_yarp::attach ( yarp::dev::PolyDriver *  driver )

overridevirtual

Attach to another object.

Parameters

driver

the polydriver that you want to attach to.

Returns

true/false on success failure.

Implements yarp::dev::IWrapper.

Definition at line 133 of file AudioRecorder_nws_yarp.cpp.

close()

bool AudioRecorder_nws_yarp::close ( )

overridevirtual

Shut the object down.

You should override this.

Returns

true/false on success/failure.

Reimplemented from yarp::os::IConfig.

Definition at line 98 of file AudioRecorder_nws_yarp.cpp.

detach()

bool AudioRecorder_nws_yarp::detach ( )

overridevirtual

Detach the object (you must have first called attach).

Returns

true/false on success failure.

Implements yarp::dev::IWrapper.

Definition at line 164 of file AudioRecorder_nws_yarp.cpp.

open()

bool AudioRecorder_nws_yarp::open ( yarp::os::Searchable &  config )

overridevirtual

Initialize the object.

You should override this.

Parameters

config

is a list of parameters for the object. Which parameters are effective for your object can vary.

Returns

true/false upon success/failure

Reimplemented from yarp::os::IConfig.

Definition at line 37 of file AudioRecorder_nws_yarp.cpp.

operator=() [1/2]

AudioRecorder_nws_yarp & AudioRecorder_nws_yarp::operator= ( AudioRecorder_nws_yarp &&  )

delete

operator=() [2/2]

AudioRecorder_nws_yarp & AudioRecorder_nws_yarp::operator= ( const AudioRecorder_nws_yarp &  )

delete

read()

bool AudioRecorder_nws_yarp::read ( yarp::os::ConnectionReader &  reader )

overridevirtual

Read this object from a network connection.

Override this for your particular class.

Parameters

reader

an interface to the network connection for reading

Returns

true iff the object is successfully read

Implements yarp::os::PortReader.

Definition at line 122 of file AudioRecorder_nws_yarp.cpp.

Friends And Related Symbol Documentation

AudioRecorderDataThread

friend class AudioRecorderDataThread

friend

Definition at line 100 of file AudioRecorder_nws_yarp.h.

AudioRecorderStatusThread

friend class AudioRecorderStatusThread

friend

Definition at line 99 of file AudioRecorder_nws_yarp.h.

---

The documentation for this class was generated from the following files:

• src/devices/audioRecorder_nws_yarp/AudioRecorder_nws_yarp.h
• src/devices/audioRecorder_nws_yarp/AudioRecorder_nws_yarp.cpp
