#include <linux/v4l2-controls.h>

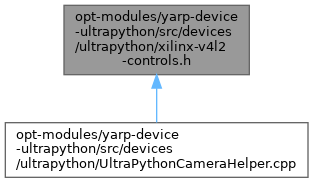

Include dependency graph for xilinx-v4l2-controls.h: This graph shows which files directly or indirectly include this file:Go to the source code of this file.
| #define V4L2_CID_XILINX_BASE (V4L2_CID_USER_BASE + V4L2_CID_XILINX_OFFSET) |
Definition at line 27 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_CRESAMPLE (V4L2_CID_USER_BASE + 0xc020) |
Definition at line 80 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_CRESAMPLE_CHROMA_PARITY (V4L2_CID_XILINX_CRESAMPLE + 2) |
Definition at line 85 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_CRESAMPLE_FIELD_PARITY (V4L2_CID_XILINX_CRESAMPLE + 1) |
Definition at line 83 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_CSC (V4L2_CID_USER_BASE + 0xc0a0) |
Definition at line 164 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_CSC_BLUE_GAIN (V4L2_CID_XILINX_CSC + 5) |
Definition at line 174 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_CSC_BRIGHTNESS (V4L2_CID_XILINX_CSC + 1) |
Definition at line 166 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_CSC_CONTRAST (V4L2_CID_XILINX_CSC + 2) |
Definition at line 168 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_CSC_GREEN_GAIN (V4L2_CID_XILINX_CSC + 4) |
Definition at line 172 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_CSC_RED_GAIN (V4L2_CID_XILINX_CSC + 3) |
Definition at line 170 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_GAMMA_CORR (V4L2_CID_USER_BASE + 0xc0c0) |
Definition at line 151 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_GAMMA_CORR_BLUE_GAMMA (V4L2_CID_XILINX_GAMMA_CORR + 2) |
Definition at line 155 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_GAMMA_CORR_GREEN_GAMMA (V4L2_CID_XILINX_GAMMA_CORR + 3) |
Definition at line 157 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_GAMMA_CORR_RED_GAMMA (V4L2_CID_XILINX_GAMMA_CORR + 1) |
Definition at line 153 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_HLS (V4L2_CID_USER_BASE + 0xc060) |
Definition at line 127 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_HLS_MODEL (V4L2_CID_XILINX_HLS + 1) |
Definition at line 130 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_LOW_LATENCY (V4L2_CID_XILINX_VIP + 1) |
Definition at line 227 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_MIPICSISS (V4L2_CID_USER_BASE + 0xc080) |
Definition at line 137 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_MIPICSISS_ACT_LANES (V4L2_CID_XILINX_MIPICSISS + 1) |
Definition at line 140 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_MIPICSISS_FRAME_COUNTER (V4L2_CID_XILINX_MIPICSISS + 2) |
Definition at line 142 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_MIPICSISS_RESET_COUNTERS (V4L2_CID_XILINX_MIPICSISS + 3) |
Definition at line 144 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_OFFSET 0xc000 |
Definition at line 26 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_PYTHON1300 (V4L2_CID_USER_BASE + 0xc300) |
Definition at line 214 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_PYTHON1300_DEBUG (V4L2_CID_XILINX_PYTHON1300 + 2) |
Definition at line 216 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_PYTHON1300_RXIF (V4L2_CID_USER_BASE + 0xc200) |
Definition at line 209 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_PYTHON1300_RXIF_REMAPPER_MODE (V4L2_CID_XILINX_PYTHON1300_RXIF + 1) |
Definition at line 210 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_PYTHON1300_RXIF_TRG_H (V4L2_CID_XILINX_PYTHON1300_RXIF + 3) |
Definition at line 212 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_PYTHON1300_RXIF_TRG_L (V4L2_CID_XILINX_PYTHON1300_RXIF + 2) |
Definition at line 211 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_PYTHON1300_SUBSAMPLING (V4L2_CID_XILINX_PYTHON1300 + 1) |
Definition at line 215 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_PYTHON1300_TRIGGER (V4L2_CID_XILINX_PYTHON1300 + 3) |
Definition at line 217 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_RGB2YUV (V4L2_CID_USER_BASE + 0xc040) |
Definition at line 91 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_RGB2YUV_ACOEF (V4L2_CID_XILINX_RGB2YUV + 10) |
Definition at line 115 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_RGB2YUV_BCOEF (V4L2_CID_XILINX_RGB2YUV + 11) |
Definition at line 117 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_RGB2YUV_CBMAX (V4L2_CID_XILINX_RGB2YUV + 3) |
Definition at line 98 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_RGB2YUV_CBMIN (V4L2_CID_XILINX_RGB2YUV + 4) |
Definition at line 100 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_RGB2YUV_CBOFFSET (V4L2_CID_XILINX_RGB2YUV + 8) |
Definition at line 108 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_RGB2YUV_CCOEF (V4L2_CID_XILINX_RGB2YUV + 12) |
Definition at line 119 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_RGB2YUV_CRMAX (V4L2_CID_XILINX_RGB2YUV + 5) |
Definition at line 102 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_RGB2YUV_CRMIN (V4L2_CID_XILINX_RGB2YUV + 6) |
Definition at line 104 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_RGB2YUV_CROFFSET (V4L2_CID_XILINX_RGB2YUV + 9) |
Definition at line 110 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_RGB2YUV_DCOEF (V4L2_CID_XILINX_RGB2YUV + 13) |
Definition at line 121 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_RGB2YUV_YMAX (V4L2_CID_XILINX_RGB2YUV + 1) |
Definition at line 94 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_RGB2YUV_YMIN (V4L2_CID_XILINX_RGB2YUV + 2) |
Definition at line 96 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_RGB2YUV_YOFFSET (V4L2_CID_XILINX_RGB2YUV + 7) |
Definition at line 106 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_SDIRX (V4L2_CID_USER_BASE + 0xc100) |
Definition at line 181 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_SDIRX_ACTIVE_STREAMS (V4L2_CID_XILINX_SDIRX + 10) |
Definition at line 202 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_SDIRX_CRC (V4L2_CID_XILINX_SDIRX + 6) |
Definition at line 194 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_SDIRX_EDH_ERRCNT (V4L2_CID_XILINX_SDIRX + 7) |
Definition at line 196 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_SDIRX_EDH_ERRCNT_ENABLE (V4L2_CID_XILINX_SDIRX + 3) |
Definition at line 188 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_SDIRX_EDH_STATUS (V4L2_CID_XILINX_SDIRX + 8) |
Definition at line 198 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_SDIRX_FRAMER (V4L2_CID_XILINX_SDIRX + 1) |
Definition at line 184 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_SDIRX_IS_3GB (V4L2_CID_XILINX_SDIRX + 11) |
Definition at line 204 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_SDIRX_MODE_DETECT (V4L2_CID_XILINX_SDIRX + 5) |
Definition at line 192 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_SDIRX_SEARCH_MODES (V4L2_CID_XILINX_SDIRX + 4) |
Definition at line 190 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_SDIRX_TS_IS_INTERLACED (V4L2_CID_XILINX_SDIRX + 9) |
Definition at line 200 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_SDIRX_VIDLOCK_WINDOW (V4L2_CID_XILINX_SDIRX + 2) |
Definition at line 186 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_TPG (V4L2_CID_USER_BASE + 0xc000) |
Definition at line 37 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_TPG_BOX_COLOR (V4L2_CID_XILINX_TPG + 15) |
Definition at line 68 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_TPG_BOX_SIZE (V4L2_CID_XILINX_TPG + 14) |
Definition at line 66 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_TPG_COLOR_MASK (V4L2_CID_XILINX_TPG + 3) |
Definition at line 44 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_TPG_CROSS_HAIR_COLUMN (V4L2_CID_XILINX_TPG + 9) |
Definition at line 56 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_TPG_CROSS_HAIR_ROW (V4L2_CID_XILINX_TPG + 8) |
Definition at line 54 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_TPG_CROSS_HAIRS (V4L2_CID_XILINX_TPG + 1) |
Definition at line 40 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_TPG_HLS_FG_PATTERN (V4L2_CID_XILINX_TPG + 18) |
Definition at line 74 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_TPG_MOTION (V4L2_CID_XILINX_TPG + 6) |
Definition at line 50 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_TPG_MOTION_SPEED (V4L2_CID_XILINX_TPG + 7) |
Definition at line 52 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_TPG_MOVING_BOX (V4L2_CID_XILINX_TPG + 2) |
Definition at line 42 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_TPG_NOISE (V4L2_CID_XILINX_TPG + 5) |
Definition at line 48 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_TPG_NOISE_GAIN (V4L2_CID_XILINX_TPG + 17) |
Definition at line 72 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_TPG_STUCK_PIXEL (V4L2_CID_XILINX_TPG + 4) |
Definition at line 46 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_TPG_STUCK_PIXEL_THRESH (V4L2_CID_XILINX_TPG + 16) |
Definition at line 70 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_TPG_ZPLATE_HOR_SPEED (V4L2_CID_XILINX_TPG + 11) |
Definition at line 60 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_TPG_ZPLATE_HOR_START (V4L2_CID_XILINX_TPG + 10) |
Definition at line 58 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_TPG_ZPLATE_VER_SPEED (V4L2_CID_XILINX_TPG + 13) |
Definition at line 64 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_TPG_ZPLATE_VER_START (V4L2_CID_XILINX_TPG + 12) |
Definition at line 62 of file xilinx-v4l2-controls.h.
| #define V4L2_CID_XILINX_VIP (V4L2_CID_USER_BASE + 0xc120) |
Definition at line 224 of file xilinx-v4l2-controls.h.
