yarp::proto::framegrabber::FrameGrabberOf_Forwarder< ImageType, IfVocab, ImgVocab > Class Template Reference

This classes implement a sender / parser for IFrameGrabberOf interface messages. More...

#include <messages/framegrabber_protocol/yarp/proto/framegrabber/FrameGrabberOf_Forwarder.h>

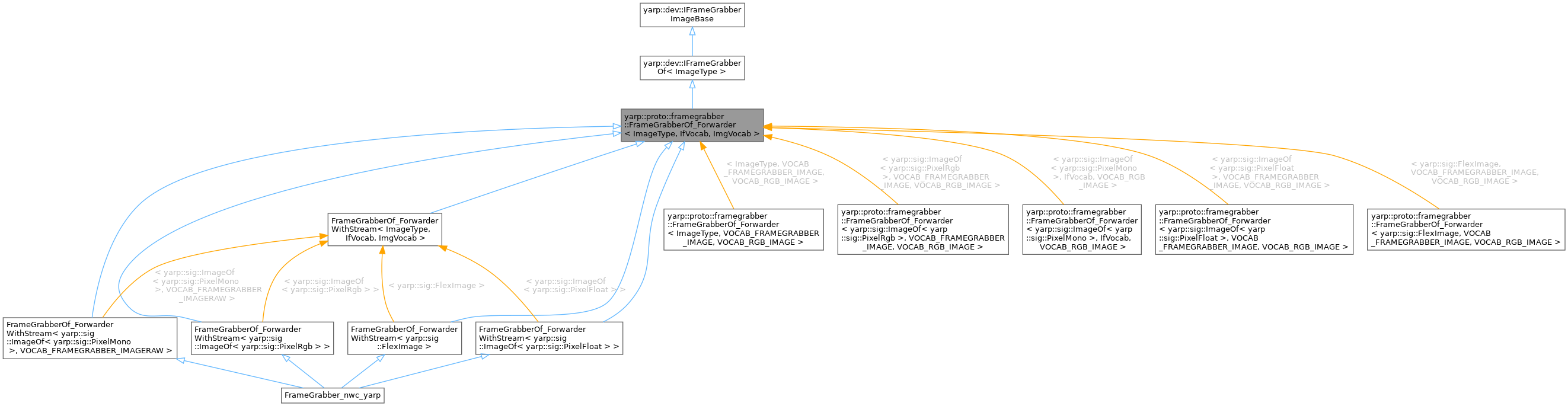

Inheritance diagram for yarp::proto::framegrabber::FrameGrabberOf_Forwarder< ImageType, IfVocab, ImgVocab >:

Public Member Functions
	FrameGrabberOf_Forwarder (yarp::os::Port &port)
	~FrameGrabberOf_Forwarder () override=default
int	height () const override
	Return the height of each frame.
int	width () const override
	Return the width of each frame.
bool	getImage (ImageType &image) override
	Get an image from the frame grabber.
bool	getImageCrop (cropType_id_t cropType, yarp::sig::VectorOf< std::pair< int, int > > vertices, ImageType &image) override
	Get a crop of the image from the frame grabber.
Public Member Functions inherited from yarp::dev::IFrameGrabberImageBase
virtual	~IFrameGrabberImageBase ()
	Destructor.

Detailed Description

template<typename ImageType, yarp::conf::vocab32_t IfVocab = VOCAB_FRAMEGRABBER_IMAGE, yarp::conf::vocab32_t ImgVocab = VOCAB_RGB_IMAGE>
class yarp::proto::framegrabber::FrameGrabberOf_Forwarder< ImageType, IfVocab, ImgVocab >

This classes implement a sender / parser for IFrameGrabberOf interface messages.

Definition at line 23 of file FrameGrabberOf_Forwarder.h.

Constructor & Destructor Documentation

FrameGrabberOf_Forwarder()

template<typename ImageType , yarp::conf::vocab32_t IfVocab, yarp::conf::vocab32_t ImgVocab>

yarp::proto::framegrabber::FrameGrabberOf_Forwarder< ImageType, IfVocab, ImgVocab >::FrameGrabberOf_Forwarder

(

yarp::os::Port &

port

)

Definition at line 21 of file FrameGrabberOf_Forwarder-inl.h.

~FrameGrabberOf_Forwarder()

template<typename ImageType , yarp::conf::vocab32_t IfVocab = VOCAB_FRAMEGRABBER_IMAGE, yarp::conf::vocab32_t ImgVocab = VOCAB_RGB_IMAGE>

yarp::proto::framegrabber::FrameGrabberOf_Forwarder< ImageType, IfVocab, ImgVocab >::~FrameGrabberOf_Forwarder ( )

overridedefault

Member Function Documentation

getImage()

template<typename ImageType , yarp::conf::vocab32_t IfVocab, yarp::conf::vocab32_t ImgVocab>

bool yarp::proto::framegrabber::FrameGrabberOf_Forwarder< ImageType, IfVocab, ImgVocab >::getImage ( ImageType &  image )

overridevirtual

Get an image from the frame grabber.

Parameters


the image to be filled

Returns

true/false upon success/failure

Implements yarp::dev::IFrameGrabberOf< ImageType >.

Reimplemented in FrameGrabberOf_ForwarderWithStream< ImageType, IfVocab, ImgVocab >, FrameGrabberOf_ForwarderWithStream< yarp::sig::FlexImage >, FrameGrabberOf_ForwarderWithStream< yarp::sig::ImageOf< yarp::sig::PixelFloat > >, FrameGrabberOf_ForwarderWithStream< yarp::sig::ImageOf< yarp::sig::PixelMono >, VOCAB_FRAMEGRABBER_IMAGERAW >, and FrameGrabberOf_ForwarderWithStream< yarp::sig::ImageOf< yarp::sig::PixelRgb > >.

Definition at line 95 of file FrameGrabberOf_Forwarder-inl.h.

getImageCrop()

template<typename ImageType , yarp::conf::vocab32_t IfVocab, yarp::conf::vocab32_t ImgVocab>

bool yarp::proto::framegrabber::FrameGrabberOf_Forwarder< ImageType, IfVocab, ImgVocab >::getImageCrop ( cropType_id_t  cropType, yarp::sig::VectorOf< std::pair< int, int > >  vertices, ImageType &  image  )

overridevirtual

Get a crop of the image from the frame grabber.

Note: this is not configuring the camera sensor to acquire a crop of the image, nor to generate a cropped version of the streaming. Instead, the full image is acquired and then a crop is created from it. If the hardware supports it, it is possible to override this method and request a hardware crop.

Parameters

cropType	enum specifying how the crop shall be generated
vertices	the input coordinate (u,v) required by the cropType
image	the image to be filled

Returns

true/false upon success/failure

Reimplemented from yarp::dev::IFrameGrabberOf< ImageType >.

Reimplemented in FrameGrabberOf_ForwarderWithStream< ImageType, IfVocab, ImgVocab >, FrameGrabberOf_ForwarderWithStream< yarp::sig::FlexImage >, FrameGrabberOf_ForwarderWithStream< yarp::sig::ImageOf< yarp::sig::PixelFloat > >, FrameGrabberOf_ForwarderWithStream< yarp::sig::ImageOf< yarp::sig::PixelMono >, VOCAB_FRAMEGRABBER_IMAGERAW >, and FrameGrabberOf_ForwarderWithStream< yarp::sig::ImageOf< yarp::sig::PixelRgb > >.

Definition at line 138 of file FrameGrabberOf_Forwarder-inl.h.

height()

template<typename ImageType , yarp::conf::vocab32_t IfVocab, yarp::conf::vocab32_t ImgVocab>

int yarp::proto::framegrabber::FrameGrabberOf_Forwarder< ImageType, IfVocab, ImgVocab >::height ( ) const

overridevirtual

Return the height of each frame.

Returns

image height

Implements yarp::dev::IFrameGrabberImageBase.

Reimplemented in FrameGrabberOf_ForwarderWithStream< ImageType, IfVocab, ImgVocab >, FrameGrabberOf_ForwarderWithStream< yarp::sig::FlexImage >, FrameGrabberOf_ForwarderWithStream< yarp::sig::ImageOf< yarp::sig::PixelFloat > >, FrameGrabberOf_ForwarderWithStream< yarp::sig::ImageOf< yarp::sig::PixelMono >, VOCAB_FRAMEGRABBER_IMAGERAW >, and FrameGrabberOf_ForwarderWithStream< yarp::sig::ImageOf< yarp::sig::PixelRgb > >.

Definition at line 29 of file FrameGrabberOf_Forwarder-inl.h.

width()

template<typename ImageType , yarp::conf::vocab32_t IfVocab, yarp::conf::vocab32_t ImgVocab>

int yarp::proto::framegrabber::FrameGrabberOf_Forwarder< ImageType, IfVocab, ImgVocab >::width ( ) const

overridevirtual

Return the width of each frame.

Returns

image width

Implements yarp::dev::IFrameGrabberImageBase.

Reimplemented in FrameGrabberOf_ForwarderWithStream< ImageType, IfVocab, ImgVocab >, FrameGrabberOf_ForwarderWithStream< yarp::sig::FlexImage >, FrameGrabberOf_ForwarderWithStream< yarp::sig::ImageOf< yarp::sig::PixelFloat > >, FrameGrabberOf_ForwarderWithStream< yarp::sig::ImageOf< yarp::sig::PixelMono >, VOCAB_FRAMEGRABBER_IMAGERAW >, and FrameGrabberOf_ForwarderWithStream< yarp::sig::ImageOf< yarp::sig::PixelRgb > >.

Definition at line 62 of file FrameGrabberOf_Forwarder-inl.h.

---

The documentation for this class was generated from the following files:

• src/devices/messages/framegrabber_protocol/yarp/proto/framegrabber/FrameGrabberOf_Forwarder.h
• src/devices/messages/framegrabber_protocol/yarp/proto/framegrabber/FrameGrabberOf_Forwarder-inl.h
