Image.h File Reference

#include <yarp/conf/system.h>
#include <yarp/os/NetUint16.h>
#include <yarp/os/Portable.h>
#include <yarp/os/Type.h>
#include <yarp/os/Vocab.h>
#include <yarp/sig/api.h>
#include <map>
#include <yarp/os/NetInt32.h>

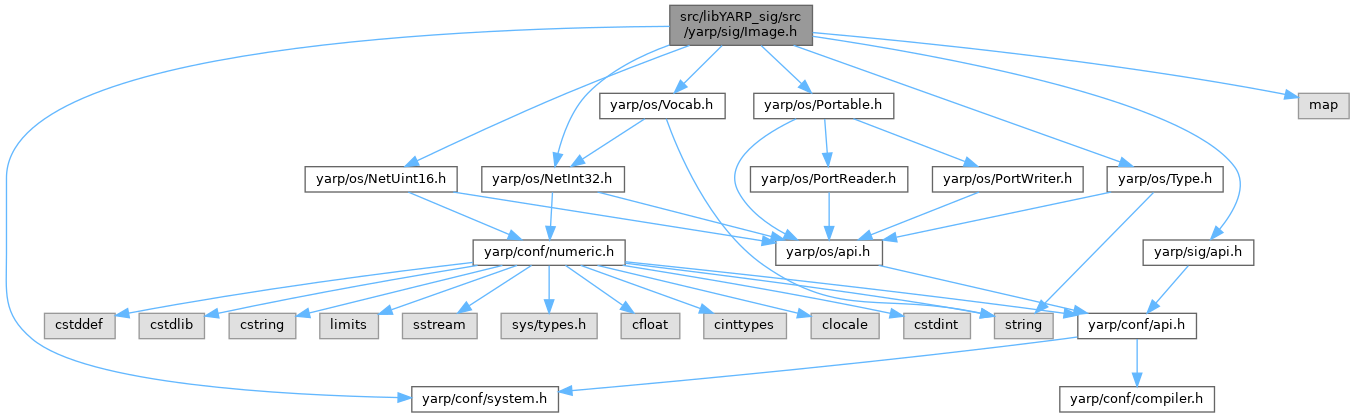

Include dependency graph for Image.h:

Go to the source code of this file.

Classes
class	yarp::sig::Image
	Base class for storing images. More...
class	yarp::sig::FlexImage
	Image class with user control of representation details. More...
class	yarp::sig::ImageOf< T >
	Typed image class. More...

Namespaces
namespace	yarp
	The main, catch-all namespace for YARP.
namespace	yarp::sig

Enumerations
enum	YarpVocabPixelTypesEnum {   VOCAB_PIXEL_INVALID = 0 ,   VOCAB_PIXEL_MONO = yarp::os::createVocab32('m','o','n','o') ,   VOCAB_PIXEL_MONO16 = yarp::os::createVocab32('m','o','1','6') ,   VOCAB_PIXEL_RGB = yarp::os::createVocab32('r','g','b') ,   VOCAB_PIXEL_RGBA = yarp::os::createVocab32('r','g','b','a') ,   VOCAB_PIXEL_BGRA = yarp::os::createVocab32('b','g','r','a') ,   VOCAB_PIXEL_INT = yarp::os::createVocab32('i','n','t') ,   VOCAB_PIXEL_HSV = yarp::os::createVocab32('h','s','v') ,   VOCAB_PIXEL_BGR = yarp::os::createVocab32('b','g','r') ,   VOCAB_PIXEL_MONO_SIGNED = yarp::os::createVocab32('s','i','g','n') ,   VOCAB_PIXEL_RGB_SIGNED = yarp::os::createVocab32('r','g','b','-') ,   VOCAB_PIXEL_RGB_INT = yarp::os::createVocab32('r','g','b','i') ,   VOCAB_PIXEL_MONO_FLOAT = yarp::os::createVocab32('d','e','c') ,   VOCAB_PIXEL_RGB_FLOAT = yarp::os::createVocab32('r','g','b','.') ,   VOCAB_PIXEL_HSV_FLOAT = yarp::os::createVocab32('h','s','v','.') ,   VOCAB_PIXEL_ENCODING_BAYER_GRBG8 = yarp::os::createVocab32('g', 'r', 'b', 'g') ,   VOCAB_PIXEL_ENCODING_BAYER_GRBG16 = yarp::os::createVocab32('g', 'r', '1', '6') ,   VOCAB_PIXEL_ENCODING_BAYER_BGGR8 = yarp::os::createVocab32('b', 'g', 'g', 'r') ,   VOCAB_PIXEL_ENCODING_BAYER_BGGR16 = yarp::os::createVocab32('b', 'g', '1', '6') ,   VOCAB_PIXEL_ENCODING_BAYER_GBRG8 = yarp::os::createVocab32('g', 'b', 'r', 'g') ,   VOCAB_PIXEL_ENCODING_BAYER_GBRG16 = yarp::os::createVocab32('g', 'b', '1', '6') ,   VOCAB_PIXEL_ENCODING_BAYER_RGGB8 = yarp::os::createVocab32('r', 'g', 'g', 'b') ,   VOCAB_PIXEL_ENCODING_BAYER_RGGB16 = yarp::os::createVocab32('r', 'g', '1', '6') ,   VOCAB_PIXEL_YUV_420 = yarp::os::createVocab32('y','u','v','a') ,   VOCAB_PIXEL_YUV_444 = yarp::os::createVocab32('y','u','v','b') ,   VOCAB_PIXEL_YUV_422 = yarp::os::createVocab32('y','u','v','c') ,   VOCAB_PIXEL_YUV_411 = yarp::os::createVocab32('y','u','v','d') }

Functions
size_t	yarp::sig::PAD_BYTES (size_t len, size_t pad)
	computes the padding of YARP images.

Enumeration Type Documentation

YarpVocabPixelTypesEnum

enum YarpVocabPixelTypesEnum

Enumerator
VOCAB_PIXEL_INVALID
VOCAB_PIXEL_MONO
VOCAB_PIXEL_MONO16
VOCAB_PIXEL_RGB
VOCAB_PIXEL_RGBA
VOCAB_PIXEL_BGRA
VOCAB_PIXEL_INT
VOCAB_PIXEL_HSV
VOCAB_PIXEL_BGR
VOCAB_PIXEL_MONO_SIGNED
VOCAB_PIXEL_RGB_SIGNED
VOCAB_PIXEL_RGB_INT
VOCAB_PIXEL_MONO_FLOAT
VOCAB_PIXEL_RGB_FLOAT
VOCAB_PIXEL_HSV_FLOAT
VOCAB_PIXEL_ENCODING_BAYER_GRBG8
VOCAB_PIXEL_ENCODING_BAYER_GRBG16
VOCAB_PIXEL_ENCODING_BAYER_BGGR8
VOCAB_PIXEL_ENCODING_BAYER_BGGR16
VOCAB_PIXEL_ENCODING_BAYER_GBRG8
VOCAB_PIXEL_ENCODING_BAYER_GBRG16
VOCAB_PIXEL_ENCODING_BAYER_RGGB8
VOCAB_PIXEL_ENCODING_BAYER_RGGB16
VOCAB_PIXEL_YUV_420
VOCAB_PIXEL_YUV_444
VOCAB_PIXEL_YUV_422
VOCAB_PIXEL_YUV_411

Definition at line 39 of file Image.h.
