audioToFileDevice : This device driver, wrapped by default by AudioPlayerWrapper, is used to save to a file an audio stream. More...

#include <audioToFileDevice/audioToFileDevice.h>

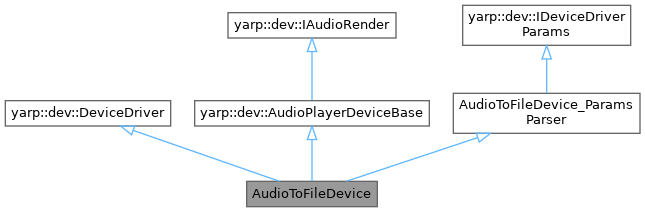

Inheritance diagram for audioToFileDevice:

Public Member Functions
	audioToFileDevice ()

	audioToFileDevice (const audioToFileDevice &)=delete

	audioToFileDevice (audioToFileDevice &&)=delete

audioToFileDevice &	operator= (const audioToFileDevice &)=delete

audioToFileDevice &	operator= (audioToFileDevice &&)=delete

	~audioToFileDevice () override

bool	open (yarp::os::Searchable &config) override
	Open the DeviceDriver. More...

bool	close () override
	Close the DeviceDriver. More...

virtual bool	renderSound (const yarp::sig::Sound &sound) override
	Render a sound using a device (i.e. More...

virtual bool	startPlayback () override
	Start the playback. More...

virtual bool	stopPlayback () override
	Stop the playback. More...

virtual bool	setHWGain (double gain) override
	Sets the hardware gain of the playback device (if supported by the hardware) More...

virtual bool	configureDeviceAndStart () override

virtual bool	interruptDeviceAndClose () override

virtual void	waitUntilPlaybackStreamIsComplete () override

Public Member Functions inherited from yarp::dev::DeviceDriver
	DeviceDriver ()

	DeviceDriver (const DeviceDriver &other)=delete

	DeviceDriver (DeviceDriver &&other) noexcept=delete

DeviceDriver &	operator= (const DeviceDriver &other)=delete

DeviceDriver &	operator= (DeviceDriver &&other) noexcept=delete

	~DeviceDriver () override

bool	open (yarp::os::Searchable &config) override
	Open the DeviceDriver. More...

bool	close () override
	Close the DeviceDriver. More...

virtual std::string	id () const
	Return the id assigned to the PolyDriver. More...

virtual void	setId (const std::string &id)
	Set the id for this device. More...

template<class T >
bool	view (T *&x)
	Get an interface to the device driver. More...

virtual DeviceDriver *	getImplementation ()
	Some drivers are bureaucrats, pointing at others. More...

Public Member Functions inherited from yarp::os::IConfig
virtual	~IConfig ()
	Destructor. More...

virtual bool	open (Searchable &config)
	Initialize the object. More...

virtual bool	close ()
	Shut the object down. More...

virtual bool	configure (Searchable &config)
	Change online parameters. More...

Public Member Functions inherited from yarp::dev::AudioPlayerDeviceBase
virtual bool	renderSound (const yarp::sig::Sound &sound) override
	Render a sound using a device (i.e. More...

virtual bool	startPlayback () override
	Start the playback. More...

virtual bool	stopPlayback () override
	Stop the playback. More...

virtual bool	isPlaying (bool &playback_enabled) override
	Check if the playback has been enabled (e.g. More...

virtual bool	getPlaybackAudioBufferMaxSize (yarp::dev::AudioBufferSize &size) override

virtual bool	getPlaybackAudioBufferCurrentSize (yarp::dev::AudioBufferSize &size) override

virtual bool	resetPlaybackAudioBuffer () override

virtual bool	setSWGain (double gain) override
	Sets a software gain for the played audio. More...

virtual	~AudioPlayerDeviceBase ()

Public Member Functions inherited from yarp::dev::IAudioRender
virtual	~IAudioRender ()
	Destructor. More...

virtual bool	renderSound (const yarp::sig::Sound &sound)=0
	Render a sound using a device (i.e. More...

virtual bool	startPlayback ()=0
	Start the playback. More...

virtual bool	stopPlayback ()=0
	Stop the playback. More...

virtual bool	isPlaying (bool &playback_enabled)=0
	Check if the playback has been enabled (e.g. More...

virtual bool	getPlaybackAudioBufferMaxSize (yarp::dev::AudioBufferSize &size)=0

virtual bool	getPlaybackAudioBufferCurrentSize (yarp::dev::AudioBufferSize &size)=0

virtual bool	resetPlaybackAudioBuffer ()=0

virtual bool	setSWGain (double gain)=0
	Sets a software gain for the played audio. More...

virtual bool	setHWGain (double gain)=0
	Sets the hardware gain of the playback device (if supported by the hardware) More...

Additional Inherited Members
Protected Types inherited from yarp::dev::AudioPlayerDeviceBase
enum	{ RENDER_APPEND = 0 , RENDER_IMMEDIATE = 1 }

Protected Member Functions inherited from yarp::dev::AudioPlayerDeviceBase
virtual bool	configureDeviceAndStart ()=0

virtual bool	interruptDeviceAndClose ()=0

virtual void	waitUntilPlaybackStreamIsComplete ()

virtual bool	immediateSound (const yarp::sig::Sound &sound)

virtual bool	appendSound (const yarp::sig::Sound &sound)

bool	configurePlayerAudioDevice (yarp::os::Searchable &config, std::string device_name)

Protected Attributes inherited from yarp::dev::AudioPlayerDeviceBase
bool	m_enable_buffer_autoclear = false

bool	m_playback_enabled = false

std::recursive_mutex	m_mutex

yarp::dev::CircularAudioBuffer_16t *	m_outputBuffer = nullptr

AudioDeviceDriverSettings	m_audioplayer_cfg

double	m_sw_gain = 1.0

double	m_hw_gain = 1.0

bool	m_audiobase_debug = false

enum yarp::dev::AudioPlayerDeviceBase:: { ... }	m_renderMode = RENDER_APPEND

Detailed Description

audioToFileDevice : This device driver, wrapped by default by AudioPlayerWrapper, is used to save to a file an audio stream.

Three different operating modes are available, defined by the optional string parameter save_mode: if save_mode == "append_data", the file is written only when the module terminates. Every start/stop operation just pauses the module. On resume, the new data is concatenated at the end of the file.

if save_mode == "overwrite_file", the output file is written every time the stop() method is called or when the module terminates. If the file already exists, it will be overwritten with the new data.

if save_mode = "rename_file", the output file is written to a NEW file every time the stop() method is called or when the module terminates. The file name is modified, using an incremental counter appended at the end of the file name.

if save_mode = "break_file", the output file is written to a NEW file every time a yarp::sig::sound is received or when the module terminates. The file name is modified, using an incremental counter appended at the end of the file name.

This device driver derives from AudioPlayerDeviceBase base class. Please check its documentation for additional details.

Parameters required by this device are:

Parameter name	SubParameter	Type	Units	Default Value	Required	Description	Notes
AUDIO_BASE	***		-	-	No	For the documentation of AUDIO_BASE group, please refer to the documentation of the base class AudioPlayerDeviceBase
file_name	-	string	-	audio_out.wav	No	The name of the file written by the module	Only .wav and .mp3 files are supported
save_mode	-	string	-	overwrite_file	No	Affects the behavior of the module and defines the save mode, as described in the documentation.
add_marker	-	bool	-	-	No	If set, it will add a marker at the beginning and at the ending of each received waveform.

See Audio in YARP for additional documentation on YARP audio.

Definition at line 48 of file audioToFileDevice.h.

Constructor & Destructor Documentation

◆ audioToFileDevice() [1/3]

audioToFileDevice::audioToFileDevice ( )

Definition at line 26 of file audioToFileDevice.cpp.

◆ audioToFileDevice() [2/3]

audioToFileDevice::audioToFileDevice ( const audioToFileDevice & )

delete

◆ audioToFileDevice() [3/3]

audioToFileDevice::audioToFileDevice ( audioToFileDevice && )

delete

◆ ~audioToFileDevice()

audioToFileDevice::~audioToFileDevice ( )

override

Definition at line 31 of file audioToFileDevice.cpp.

Member Function Documentation

◆ close()

bool audioToFileDevice::close ( )

overridevirtual

Close the DeviceDriver.

Returns: true/false on success/failure.

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 148 of file audioToFileDevice.cpp.

◆ configureDeviceAndStart()

bool audioToFileDevice::configureDeviceAndStart ( )

overridevirtual

Implements yarp::dev::AudioPlayerDeviceBase.

Definition at line 205 of file audioToFileDevice.cpp.

◆ interruptDeviceAndClose()

bool audioToFileDevice::interruptDeviceAndClose ( )

overridevirtual

Implements yarp::dev::AudioPlayerDeviceBase.

Definition at line 211 of file audioToFileDevice.cpp.

◆ open()

bool audioToFileDevice::open ( yarp::os::Searchable & config )

overridevirtual

Open the DeviceDriver.

Parameters

config is a list of parameters for the device. Which parameters are effective for your device can vary. See device invocation examples. If there is no example for your device, you can run the "yarpdev" program with the verbose flag set to probe what parameters the device is checking. If that fails too, you'll need to read the source code (please nag one of the yarp developers to add documentation for your device).

Returns: true/false upon success/failure

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 36 of file audioToFileDevice.cpp.

◆ operator=() [1/2]

audioToFileDevice & audioToFileDevice::operator= ( audioToFileDevice && )

delete

◆ operator=() [2/2]

audioToFileDevice & audioToFileDevice::operator= ( const audioToFileDevice & )

delete

◆ renderSound()

bool audioToFileDevice::renderSound ( const yarp::sig::Sound & sound )

overridevirtual

Render a sound using a device (i.e.

send it to the speakers).

Parameters

sound the sound to be rendered

Returns: true/false upon success/failure

Reimplemented from yarp::dev::AudioPlayerDeviceBase.

Definition at line 178 of file audioToFileDevice.cpp.

◆ setHWGain()

bool audioToFileDevice::setHWGain ( double gain )

overridevirtual

Sets the hardware gain of the playback device (if supported by the hardware)

Parameters

gain	the audio gain (1.0 is the default value)

Returns: true/false upon success/failure

Implements yarp::dev::IAudioRender.

Definition at line 194 of file audioToFileDevice.cpp.

◆ startPlayback()

bool audioToFileDevice::startPlayback ( )

overridevirtual

Start the playback.

Returns: true/false upon success/failure

Reimplemented from yarp::dev::AudioPlayerDeviceBase.

Definition at line 154 of file audioToFileDevice.cpp.

◆ stopPlayback()

bool audioToFileDevice::stopPlayback ( )

overridevirtual

Stop the playback.

Returns: true/false upon success/failure

Reimplemented from yarp::dev::AudioPlayerDeviceBase.

Definition at line 166 of file audioToFileDevice.cpp.

◆ waitUntilPlaybackStreamIsComplete()

void audioToFileDevice::waitUntilPlaybackStreamIsComplete ( )

overridevirtual

Reimplemented from yarp::dev::AudioPlayerDeviceBase.

Definition at line 217 of file audioToFileDevice.cpp.

The documentation for this class was generated from the following files:

src/devices/audioToFileDevice/audioToFileDevice.h
src/devices/audioToFileDevice/audioToFileDevice.cpp
