localization2D_nws_ros: A localization server which can be wrap multiple algorithms and devices to provide robot localization in a 2D World. More...

#include <localization2DServer/Localization2D_nws_ros.h>

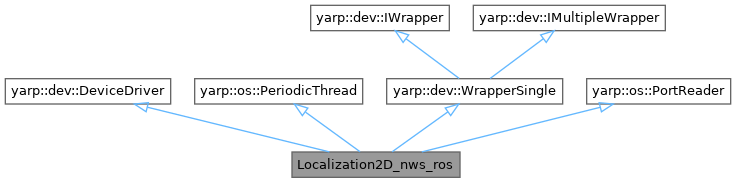

+ Inheritance diagram for Localization2D_nws_ros:

Public Member Functions

 Localization2D_nws_ros ()

bool open (yarp::os::Searchable &prop) override
 Open the DeviceDriver. More...

bool close () override
 Close the DeviceDriver. More...

bool detach () override
 Detach the object (you must have first called attach). More...

bool attach (yarp::dev::PolyDriver *driver) override
 Attach to another object. More...

void run () override
 Loop function. More...

bool initialize_YARP (yarp::os::Searchable &config)

bool initialize_ROS (yarp::os::Searchable &config)

bool read (yarp::os::ConnectionReader &connection) override
 Read this object from a network connection. More...

- Public Member Functions inherited from yarp::dev::DeviceDriver
 ~DeviceDriver () override=default
 Destructor. More...

template<class T >
bool view (T *&x)
 Get an interface to the device driver. More...

virtual DeviceDrivergetImplementation ()
 Some drivers are bureaucrats, pointing at others. More...

- Public Member Functions inherited from yarp::os::IConfig
virtual ~IConfig ()
 Destructor. More...

virtual bool configure (Searchable &config)
 Change online parameters. More...

- Public Member Functions inherited from yarp::os::PeriodicThread
 PeriodicThread (double period, ShouldUseSystemClock useSystemClock=ShouldUseSystemClock::No, PeriodicThreadClock clockAccuracy=PeriodicThreadClock::Relative)
 Constructor. More...

 PeriodicThread (double period, PeriodicThreadClock clockAccuracy)
 Constructor. More...

virtual ~PeriodicThread ()

bool start ()
 Call this to start the thread. More...

void step ()
 Call this to "step" the thread rather than starting it. More...

void stop ()
 Call this to stop the thread, this call blocks until the thread is terminated (and releaseThread() called). More...

void askToStop ()
 Stop the thread. More...

bool isRunning () const
 Returns true when the thread is started, false otherwise. More...

bool isSuspended () const
 Returns true when the thread is suspended, false otherwise. More...

bool setPeriod (double period)
 Set the (new) period of the thread. More...

double getPeriod () const
 Return the current period of the thread. More...

void suspend ()
 Suspend the thread, the thread keeps running by doLoop is never executed. More...

void resume ()
 Resume the thread if previously suspended. More...

void resetStat ()
 Reset thread statistics. More...

double getEstimatedPeriod () const
 Return estimated period since last reset. More...

void getEstimatedPeriod (double &av, double &std) const
 Return estimated period since last reset. More...

unsigned int getIterations () const
 Return the number of iterations performed since last reset. More...

double getEstimatedUsed () const
 Return the estimated duration of the run() function since last reset. More...

void getEstimatedUsed (double &av, double &std) const
 Return estimated duration of the run() function since last reset. More...

int setPriority (int priority, int policy=-1)
 Set the priority and scheduling policy of the thread, if the OS supports that. More...

int getPriority () const
 Query the current priority of the thread, if the OS supports that. More...

int getPolicy () const
 Query the current scheduling policy of the thread, if the OS supports that. More...

- Public Member Functions inherited from yarp::dev::WrapperSingle
 ~WrapperSingle () override
 Destructor. More...

bool attachAll (const yarp::dev::PolyDriverList &drivers) final
 Attach to a list of objects. More...

bool detachAll () final
 Detach the object (you must have first called attach). More...

- Public Member Functions inherited from yarp::dev::IWrapper
virtual ~IWrapper ()
 Destructor. More...

- Public Member Functions inherited from yarp::dev::IMultipleWrapper
virtual ~IMultipleWrapper ()
 Destructor. More...

- Public Member Functions inherited from yarp::os::PortReader
virtual ~PortReader ()
 Destructor. More...

virtual Type getReadType () const


Protected Attributes

std::string m_local_name = "/localization2D_nws_ros"

yarp::os::Port m_rpcPort

std::string m_rpcPortName

std::string m_robot_frame

std::string m_fixed_frame

bool m_enable_publish_odometry_topic = true

bool m_enable_publish_odometry_tf = true

std::string m_child_frame_id = "base_link"

std::string m_parent_frame_id = "odom"

std::string m_node_name

yarp::os::Nodem_node = nullptr

std::string m_odom_topic_name

yarp::os::Publisher< yarp::rosmsg::nav_msgs::Odometrym_odometry_publisher

yarp::os::Publisher< yarp::rosmsg::tf2_msgs::TFMessagem_tf_publisher

yarp::dev::PolyDriver pLoc

yarp::dev::Nav2D::ILocalization2DiLoc = nullptr

double m_stats_time_last

double m_period

yarp::os::Stamp m_loc_stamp

yarp::os::Stamp m_odom_stamp

yarp::dev::OdometryData m_current_odometry

yarp::dev::Nav2D::Map2DLocation m_current_position

yarp::dev::Nav2D::LocalizationStatusEnum m_current_status = yarp::dev::Nav2D::LocalizationStatusEnum::localization_status_not_yet_localized


Additional Inherited Members

- Protected Member Functions inherited from yarp::os::PeriodicThread
virtual bool threadInit ()
 Initialization method. More...

virtual void threadRelease ()
 Release method. More...

virtual void beforeStart ()
 Called just before a new thread starts. More...

virtual void afterStart (bool success)
 Called just after a new thread starts (or fails to start), this is executed by the same thread that calls start(). More...


Detailed Description

localization2D_nws_ros: A localization server which can be wrap multiple algorithms and devices to provide robot localization in a 2D World.

Localization2D_nws_ros

Parameters required by this device are:

Parameter name Type Units Default Value Required Description Notes
period double s 0.01 No The period of the working thread
yarp_base_name string - Yes The name of the server, used as a prefix for the opened yarp ports By default ports opened are: /xxx/rpc
publish_odometry bool - true No Periodically publish odometry data over the network -
publish_tf bool - true No Periodically publish tf data over the network -
parent_frame_id string - odom No The name of the of the parent frame published in the /tf topic -
child_frame_id string - base_link No The name of the of the child frame published in the /tf topic -
topic_name string - Yes The name of the of the odometry topic -
node_name string - Yes The name of the of the ROS node -
subdevice string - - Yes The name of the of Localization device to be used -

Definition at line 49 of file Localization2D_nws_ros.h.

Constructor & Destructor Documentation

◆ Localization2D_nws_ros()

Localization2D_nws_ros::Localization2D_nws_ros ( )

Definition at line 44 of file Localization2D_nws_ros.cpp.

Member Function Documentation

◆ attach()

bool Localization2D_nws_ros::attach ( yarp::dev::PolyDriver driver)
overridevirtual

Attach to another object.

Parameters
driverthe polydriver that you want to attach to.
Returns
true/false on success failure.

Implements yarp::dev::IWrapper.

Definition at line 50 of file Localization2D_nws_ros.cpp.

◆ close()

bool Localization2D_nws_ros::close ( )
overridevirtual

Close the DeviceDriver.

Returns
true/false on success/failure.

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 234 of file Localization2D_nws_ros.cpp.

◆ detach()

bool Localization2D_nws_ros::detach ( )
overridevirtual

Detach the object (you must have first called attach).

Returns
true/false on success failure.

Implements yarp::dev::IWrapper.

Definition at line 83 of file Localization2D_nws_ros.cpp.

◆ initialize_ROS()

bool Localization2D_nws_ros::initialize_ROS ( yarp::os::Searchable config)

Definition at line 172 of file Localization2D_nws_ros.cpp.

◆ initialize_YARP()

bool Localization2D_nws_ros::initialize_YARP ( yarp::os::Searchable config)

Definition at line 222 of file Localization2D_nws_ros.cpp.

◆ open()

bool Localization2D_nws_ros::open ( yarp::os::Searchable config)
overridevirtual

Open the DeviceDriver.

Parameters
configis a list of parameters for the device. Which parameters are effective for your device can vary. See device invocation examples. If there is no example for your device, you can run the "yarpdev" program with the verbose flag set to probe what parameters the device is checking. If that fails too, you'll need to read the source code (please nag one of the yarp developers to add documentation for your device).
Returns
true/false upon success/failure

Reimplemented from yarp::dev::DeviceDriver.

Definition at line 93 of file Localization2D_nws_ros.cpp.

◆ read()

bool Localization2D_nws_ros::read ( yarp::os::ConnectionReader reader)
overridevirtual

Read this object from a network connection.

Override this for your particular class.

Parameters
readeran interface to the network connection for reading
Returns
true iff the object is successfully read

Implements yarp::os::PortReader.

Definition at line 259 of file Localization2D_nws_ros.cpp.

◆ run()

void Localization2D_nws_ros::run ( )
overridevirtual

Loop function.

This is the thread itself. The thread calls the run() function every <period> ms. At the end of each run, the thread will sleep the amounth of time required, taking into account the time spent inside the loop function. Example: requested period is 10ms, the run() function take 3ms to be executed, the thread will sleep for 7ms.

Note: after each run is completed, the thread will call a yield() in order to facilitate other threads to run.

Implements yarp::os::PeriodicThread.

Definition at line 290 of file Localization2D_nws_ros.cpp.

Member Data Documentation

◆ iLoc

yarp::dev::Nav2D::ILocalization2D* Localization2D_nws_ros::iLoc = nullptr
protected

Definition at line 77 of file Localization2D_nws_ros.h.

◆ m_child_frame_id

std::string Localization2D_nws_ros::m_child_frame_id = "base_link"
protected

Definition at line 67 of file Localization2D_nws_ros.h.

◆ m_current_odometry

yarp::dev::OdometryData Localization2D_nws_ros::m_current_odometry
protected

Definition at line 84 of file Localization2D_nws_ros.h.

◆ m_current_position

yarp::dev::Nav2D::Map2DLocation Localization2D_nws_ros::m_current_position
protected

Definition at line 85 of file Localization2D_nws_ros.h.

◆ m_current_status

yarp::dev::Nav2D::LocalizationStatusEnum Localization2D_nws_ros::m_current_status = yarp::dev::Nav2D::LocalizationStatusEnum::localization_status_not_yet_localized
protected

Definition at line 86 of file Localization2D_nws_ros.h.

◆ m_enable_publish_odometry_tf

bool Localization2D_nws_ros::m_enable_publish_odometry_tf = true
protected

Definition at line 64 of file Localization2D_nws_ros.h.

◆ m_enable_publish_odometry_topic

bool Localization2D_nws_ros::m_enable_publish_odometry_topic = true
protected

Definition at line 63 of file Localization2D_nws_ros.h.

◆ m_fixed_frame

std::string Localization2D_nws_ros::m_fixed_frame
protected

Definition at line 62 of file Localization2D_nws_ros.h.

◆ m_loc_stamp

yarp::os::Stamp Localization2D_nws_ros::m_loc_stamp
protected

Definition at line 81 of file Localization2D_nws_ros.h.

◆ m_local_name

std::string Localization2D_nws_ros::m_local_name = "/localization2D_nws_ros"
protected

Definition at line 58 of file Localization2D_nws_ros.h.

◆ m_node

yarp::os::Node* Localization2D_nws_ros::m_node = nullptr
protected

Definition at line 70 of file Localization2D_nws_ros.h.

◆ m_node_name

std::string Localization2D_nws_ros::m_node_name
protected

Definition at line 69 of file Localization2D_nws_ros.h.

◆ m_odom_stamp

yarp::os::Stamp Localization2D_nws_ros::m_odom_stamp
protected

Definition at line 82 of file Localization2D_nws_ros.h.

◆ m_odom_topic_name

std::string Localization2D_nws_ros::m_odom_topic_name
protected

Definition at line 71 of file Localization2D_nws_ros.h.

◆ m_odometry_publisher

yarp::os::Publisher<yarp::rosmsg::nav_msgs::Odometry> Localization2D_nws_ros::m_odometry_publisher
protected

Definition at line 72 of file Localization2D_nws_ros.h.

◆ m_parent_frame_id

std::string Localization2D_nws_ros::m_parent_frame_id = "odom"
protected

Definition at line 68 of file Localization2D_nws_ros.h.

◆ m_period

double Localization2D_nws_ros::m_period
protected

Definition at line 80 of file Localization2D_nws_ros.h.

◆ m_robot_frame

std::string Localization2D_nws_ros::m_robot_frame
protected

Definition at line 61 of file Localization2D_nws_ros.h.

◆ m_rpcPort

yarp::os::Port Localization2D_nws_ros::m_rpcPort
protected

Definition at line 59 of file Localization2D_nws_ros.h.

◆ m_rpcPortName

std::string Localization2D_nws_ros::m_rpcPortName
protected

Definition at line 60 of file Localization2D_nws_ros.h.

◆ m_stats_time_last

double Localization2D_nws_ros::m_stats_time_last
protected

Definition at line 79 of file Localization2D_nws_ros.h.

◆ m_tf_publisher

yarp::os::Publisher<yarp::rosmsg::tf2_msgs::TFMessage> Localization2D_nws_ros::m_tf_publisher
protected

Definition at line 73 of file Localization2D_nws_ros.h.

◆ pLoc

yarp::dev::PolyDriver Localization2D_nws_ros::pLoc
protected

Definition at line 76 of file Localization2D_nws_ros.h.


The documentation for this class was generated from the following files:
